Pcm Pin Identification & Voltage (Amigo & Rodeo 3.2L)

NOTE: For connector and terminal identification, see Fig 1-Fig 8 .

Fig 1: PCM Pin Identification & Voltage Table (Amigo & Rodeo 3.2L - 80-Pin Blue Connector Row "F1-20")

Courtesy of ISUZU MOTOR CO.

Fig 2: PCM Pin Identification & Voltage Table (Amigo & Rodeo 3.2L - 80-Pin Blue Connector Row "F21-40")

Courtesy of ISUZU MOTOR CO.

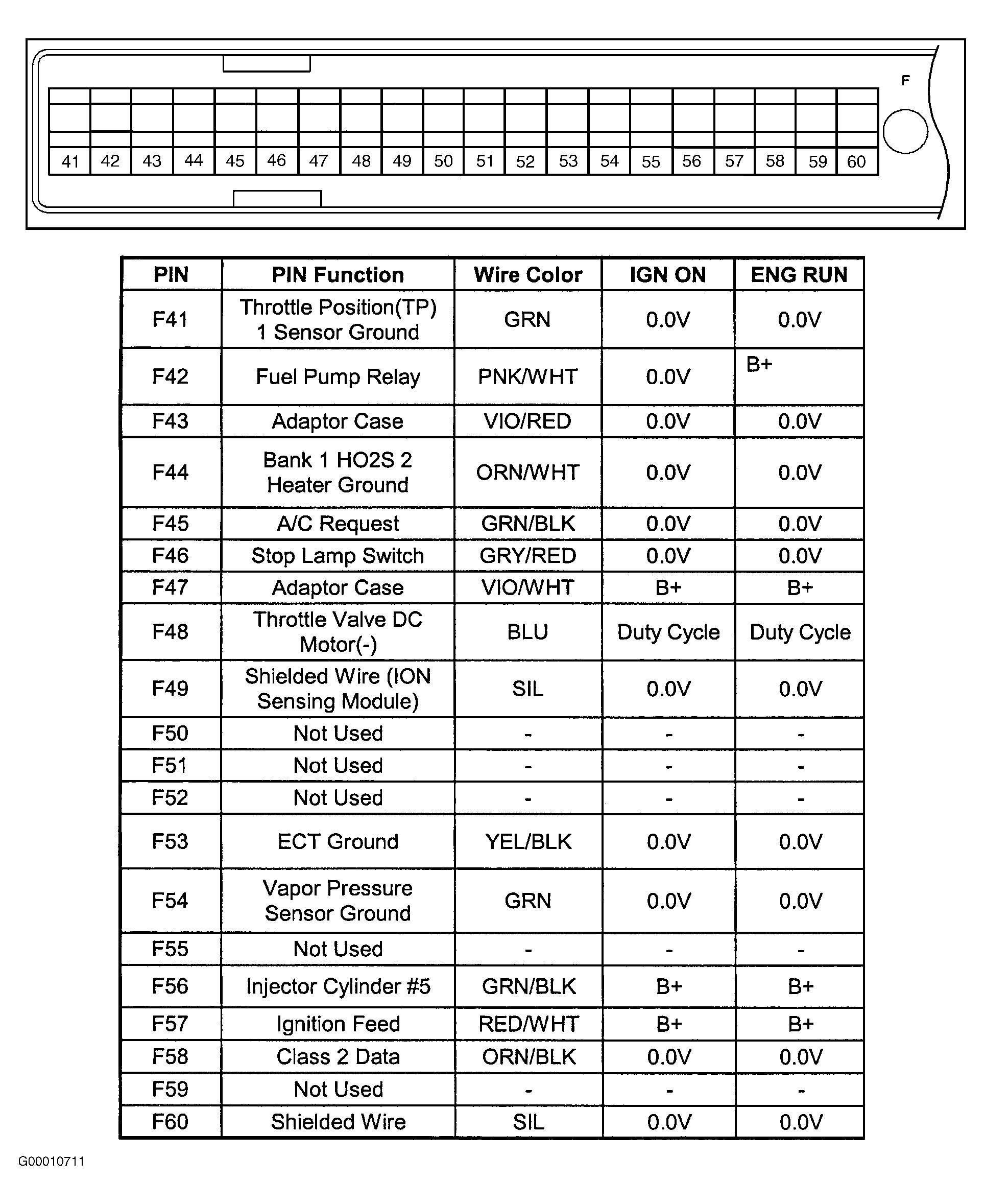

Fig 3: PCM Pin Identification & Voltage Table (Amigo & Rodeo 3.2L - 80-Pin Blue Connector Row "F41-60")

Courtesy of ISUZU MOTOR CO.

Fig 4: PCM Pin Identification & Voltage Table (Amigo & Rodeo 3.2L - 80-Pin Blue Connector Row "F61-80")

Courtesy of ISUZU MOTOR CO.

Fig 5: PCM Pin Identification & Voltage Table (Amigo & Rodeo 3.2L - 80-Pin Red Connector Row "S1-20")

Courtesy of ISUZU MOTOR CO.

Fig 6: PCM Pin Identification & Voltage Table (Amigo & Rodeo 3.2L - 80-Pin Red Connector Row "S21-40")

Courtesy of ISUZU MOTOR CO.

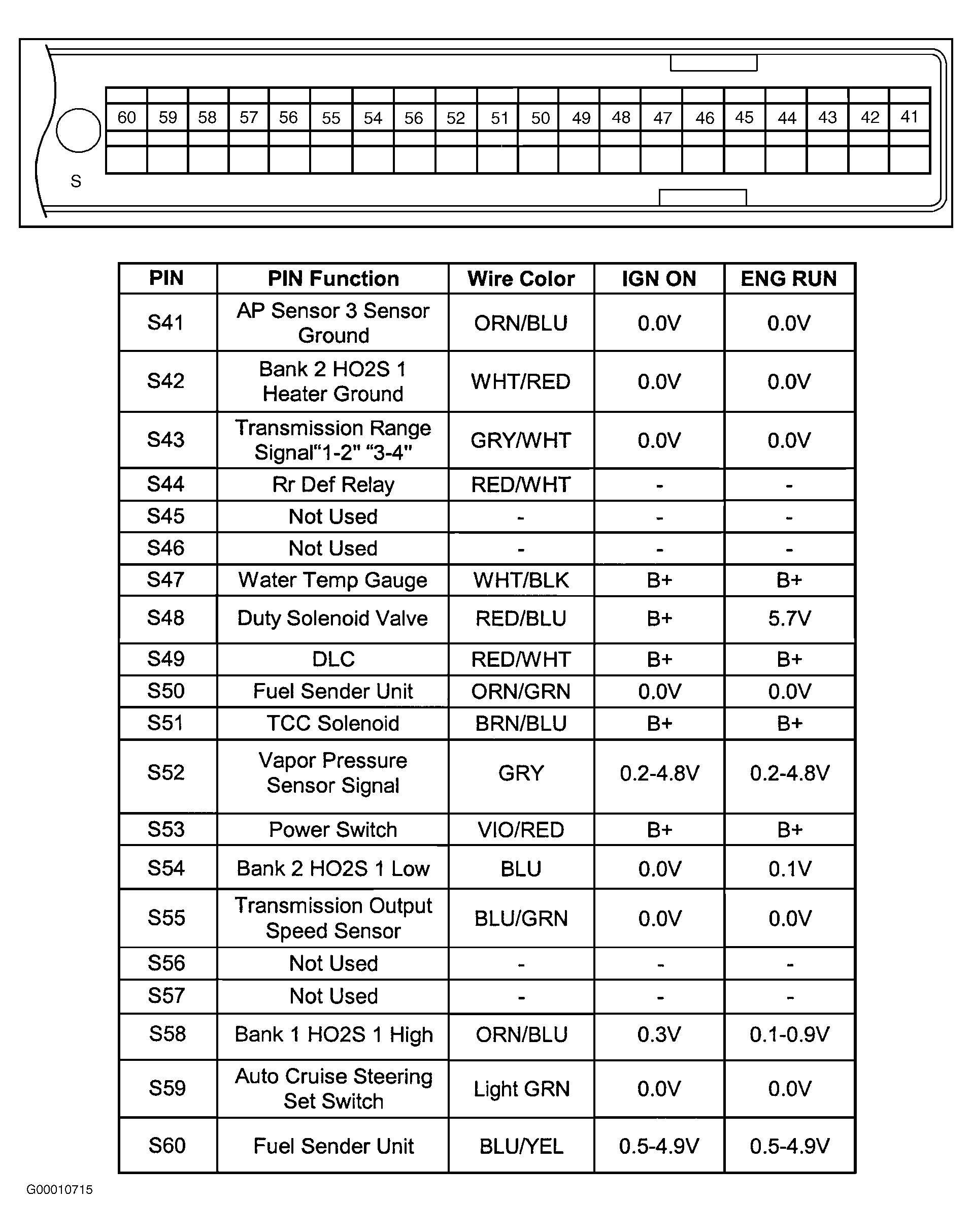

Fig 7: PCM Pin Identification & Voltage Table (Amigo & Rodeo 3.2L - 80-Pin Red Connector Row "S41-60")

Courtesy of ISUZU MOTOR CO.

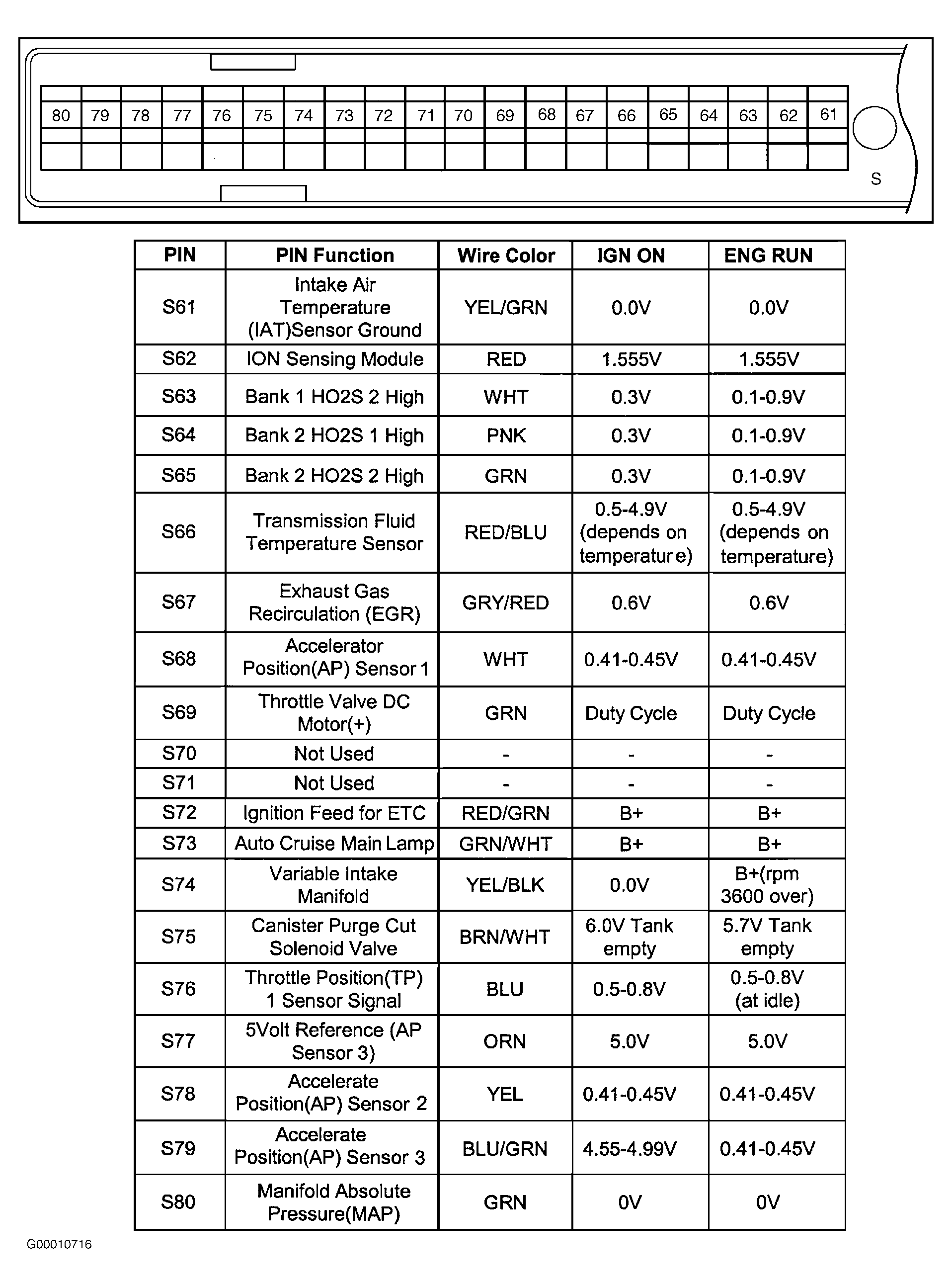

Fig 8: PCM Pin Identification & Voltage Table (Amigo & Rodeo 3.2L - 80-Pin Red Connector Row "S61-80")

Courtesy of ISUZU MOTOR CO.
