2-4 Band Installation — 2010 Hummer H3 Base, Automatic Service Manual

2-4 Band Installation

    Fig 1: 2-4 Band Assembly
    GM190436Courtesy of GENERAL MOTORS CORP.
  1. Inspect the 2-4 band assembly (602) for damage or wear.
  2. Install the 2-4 band (602) into the case.

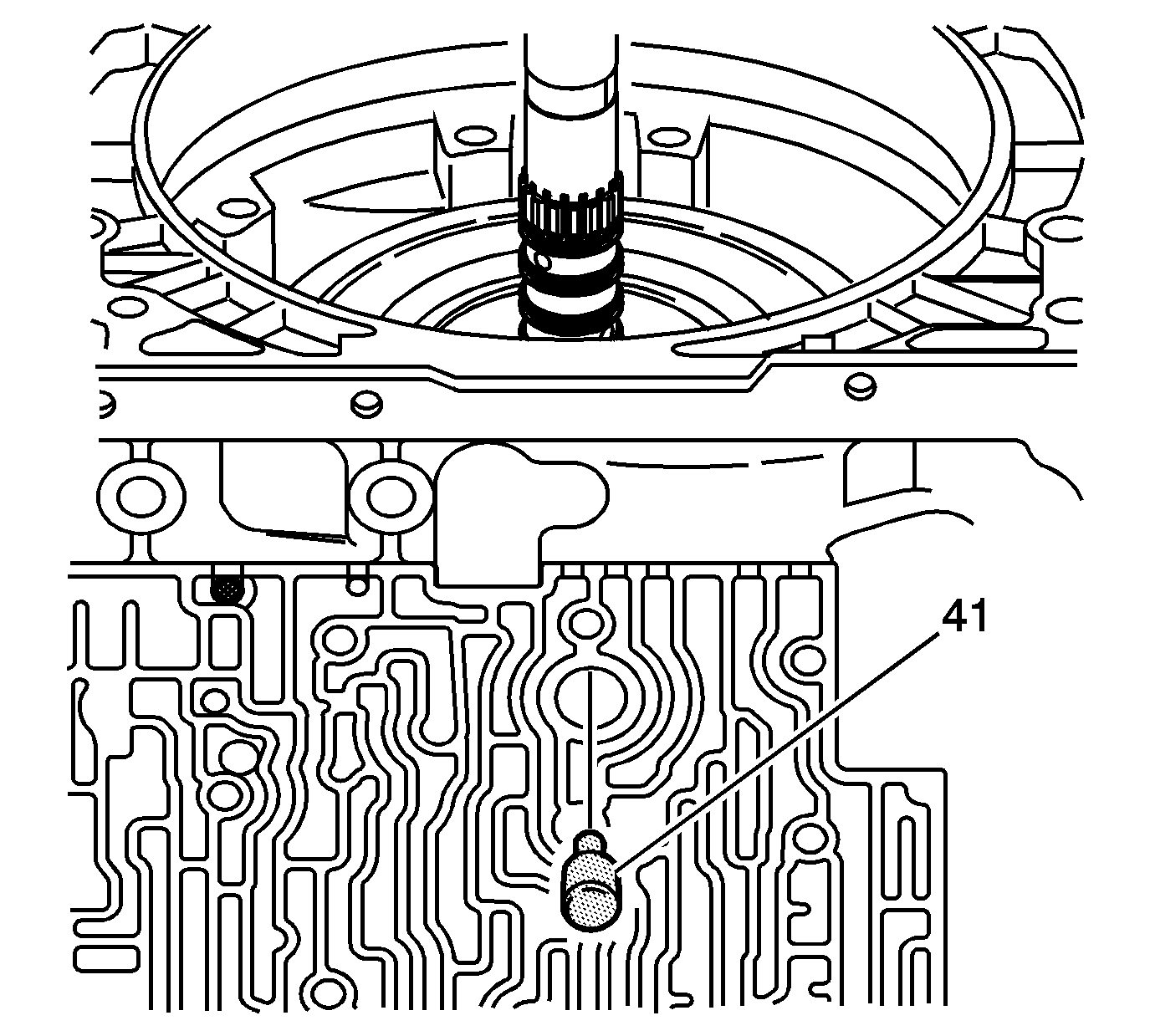

    3. Fig 2: Band Anchor Pin
    GM1552920Courtesy of GENERAL MOTORS CORP.
  3. Install the band anchor pin (41) into the case.
  4. Index the band to fit the band anchor pin into the band.
