Overview - Door

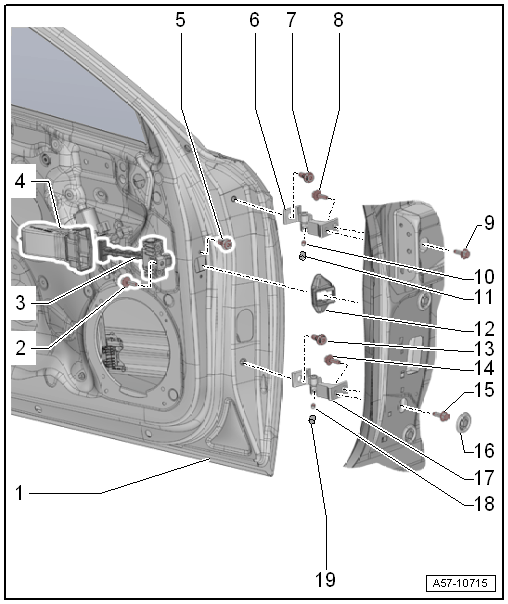

Fig 1: Door Exploded View

Courtesy of AUDI OF AMERICA, LLC

1. Door
   • Removing and installing. Refer to DOOR, REMOVING AND INSTALLING
2. Bolt
   • 33 Nm
3. Door Arrester
   • Removing and installing. Refer to DOOR ARRESTER, REMOVING AND INSTALLING
4. Cap
   • For the door arrester
   • Note the installation direction
5. Bolt
   • 8 Nm
   • Quantity: 2
6. Door Hinge
7. Bolt
   • 45 Nm
8. Bolt
   • 32 Nm
9. Bolt
   • 32 Nm
10. Stud Bolt
    • 23 Nm
11. Cap
    • Place on the stud bolt
12. Grommet
    • For the door arrester
    • Equipped on some models
13. Bolt
    • 45 Nm
14. Bolt
    • 32 Nm
15. Bolt
    • 32 Nm
16. Cover
17. Door Hinge
18. Stud Bolt
    • 23 Nm
19. Cap
    • Place on the stud bolt
