Engine Controls Schematics — 2010 Hummer H3 Base, Automatic Service Manual
Engine Controls Schematics
Fig 1: Module Power, Ground, Serial Data and MIL
Courtesy of GENERAL MOTORS CORP.
Fig 2: Engine Data Sensors - 5-Volt and Low Reference
Courtesy of GENERAL MOTORS CORP.
Fig 3: Engine Data Sensors - Pressure, Temperature, and Throttle Controls
Courtesy of GENERAL MOTORS CORP.
Fig 4: Engine Data Sensors - Heated Oxygen Sensors
Courtesy of GENERAL MOTORS CORP.
Fig 5: Engine Data Sensors - Electronic Throttle Control
Courtesy of GENERAL MOTORS CORP.
Fig 6: Ignition Controls - Sensors
Courtesy of GENERAL MOTORS CORP.

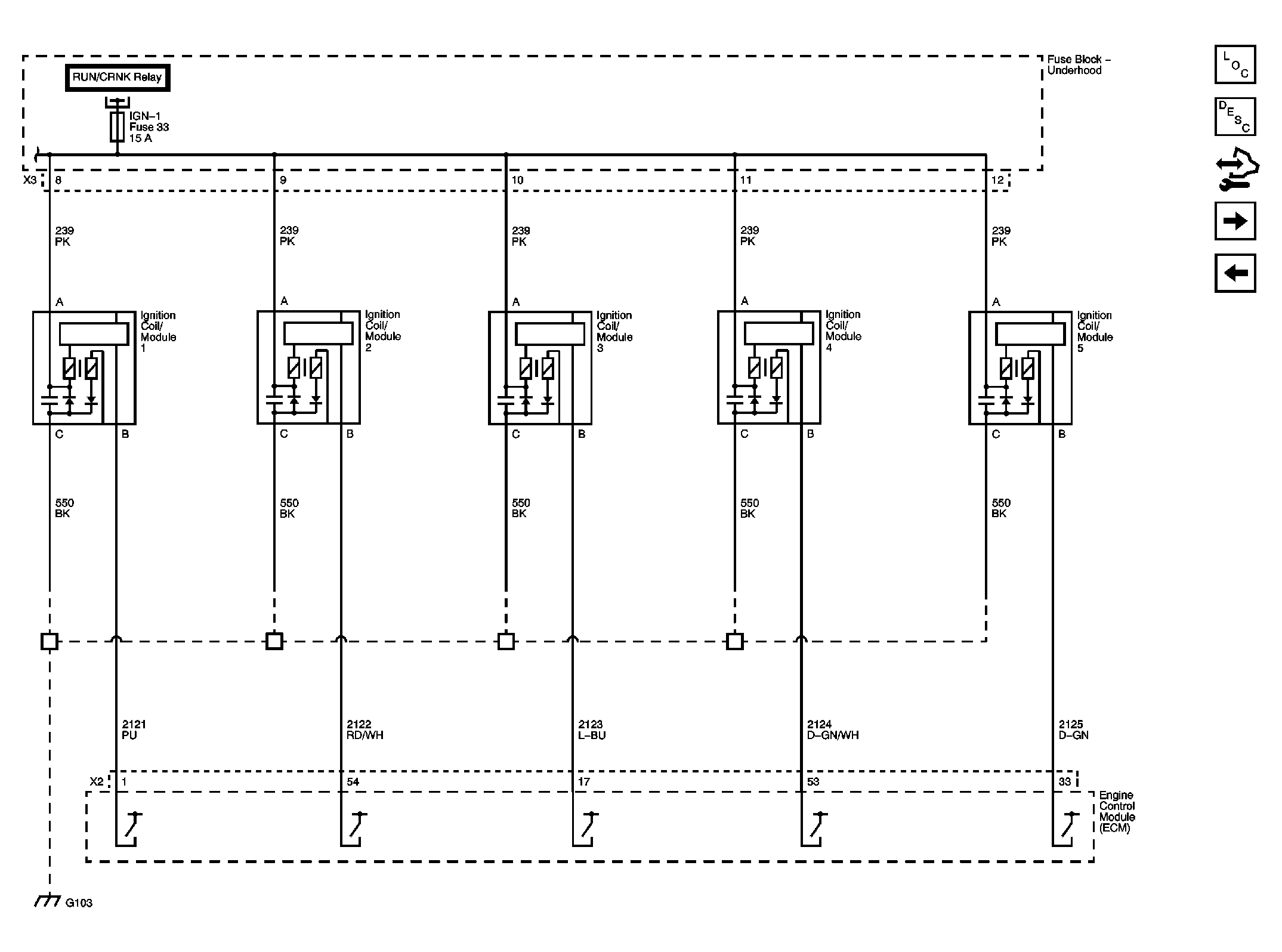

Fig 7: Ignition Controls - Ignition System Coils
Courtesy of GENERAL MOTORS CORP.
Fig 8: Fuel Controls - EVAP Controls
Courtesy of GENERAL MOTORS CORP.
Fig 9: Fuel Controls - Fuel Pump Controls
Courtesy of GENERAL MOTORS CORP.
Fig 10: Fuel Controls - Fuel Injectors
Courtesy of GENERAL MOTORS CORP.
Fig 11: Device Controls - Secondary Air Injection (K18)
Courtesy of GENERAL MOTORS CORP.
Fig 12: Controlled/Monitored Subsystem References
Courtesy of GENERAL MOTORS CORP.
