Cable Installation - Shift Control End — 2010 Hummer H3 Base, Automatic Service Manual

Cable Installation - Shift Control End

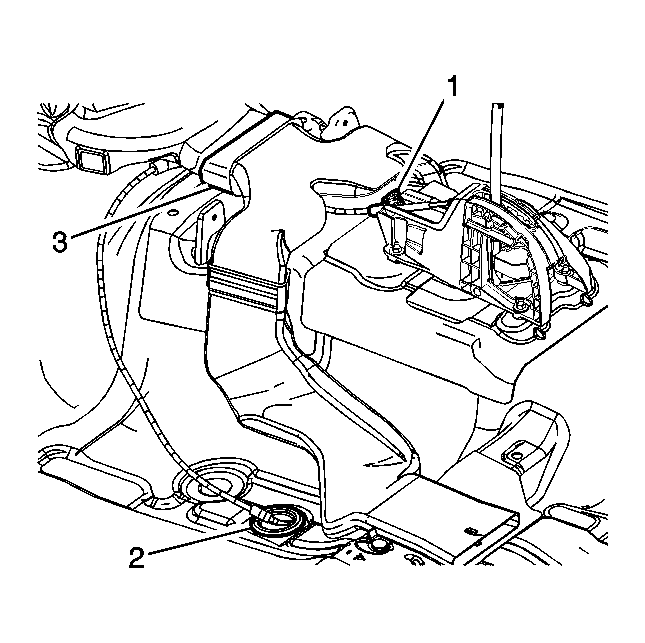

    Fig 1: Cable & Floor Panel Grommet
    GM1563042Courtesy of GENERAL MOTORS CORP.
  1. Insert the range selector cable through the floor panel and seat the cable grommet (2).
  2. Route the range selector cable under the heat duct (3).

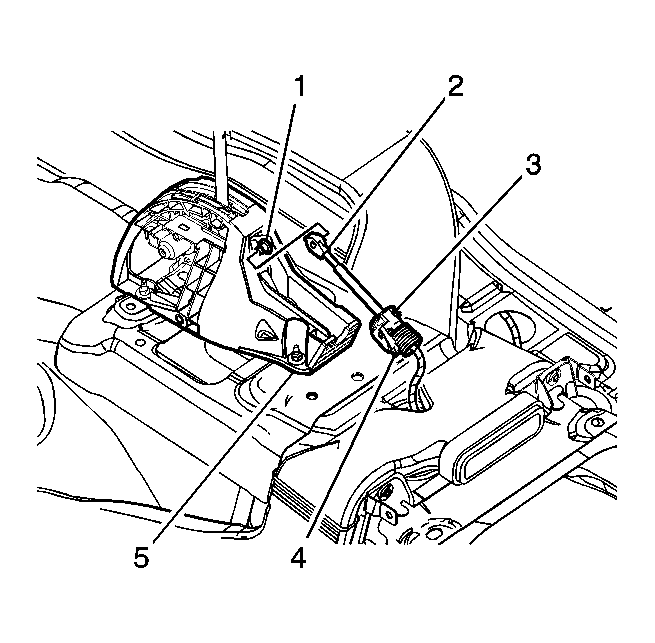

    3. Fig 2: Transmission Range Selector Lever Ball Stud, Shift Control Assembly & Range Selector Cable
    GM1563036Courtesy of GENERAL MOTORS CORP.
  3. Install the range selector cable (3) to the shift control assembly (5).
  4. Ensure the cable retainer (4) is secured to the shift control assembly (5).
  5. Push the range selector cable end (2) onto the range selector lever ball stud (1).
  6. Reposition the drivers side carpet to the floor panel.
  7. Inspect below the accelerator pedal for binding, to ensure full range of motion.
  8. Install the cowl side trim panel. Refer to Cowl Side Trim Panel Replacement .
