Front Seat Replacement - Bucket — 2010 Hummer H3 Base, Automatic Service Manual

Front Seat Replacement - Bucket

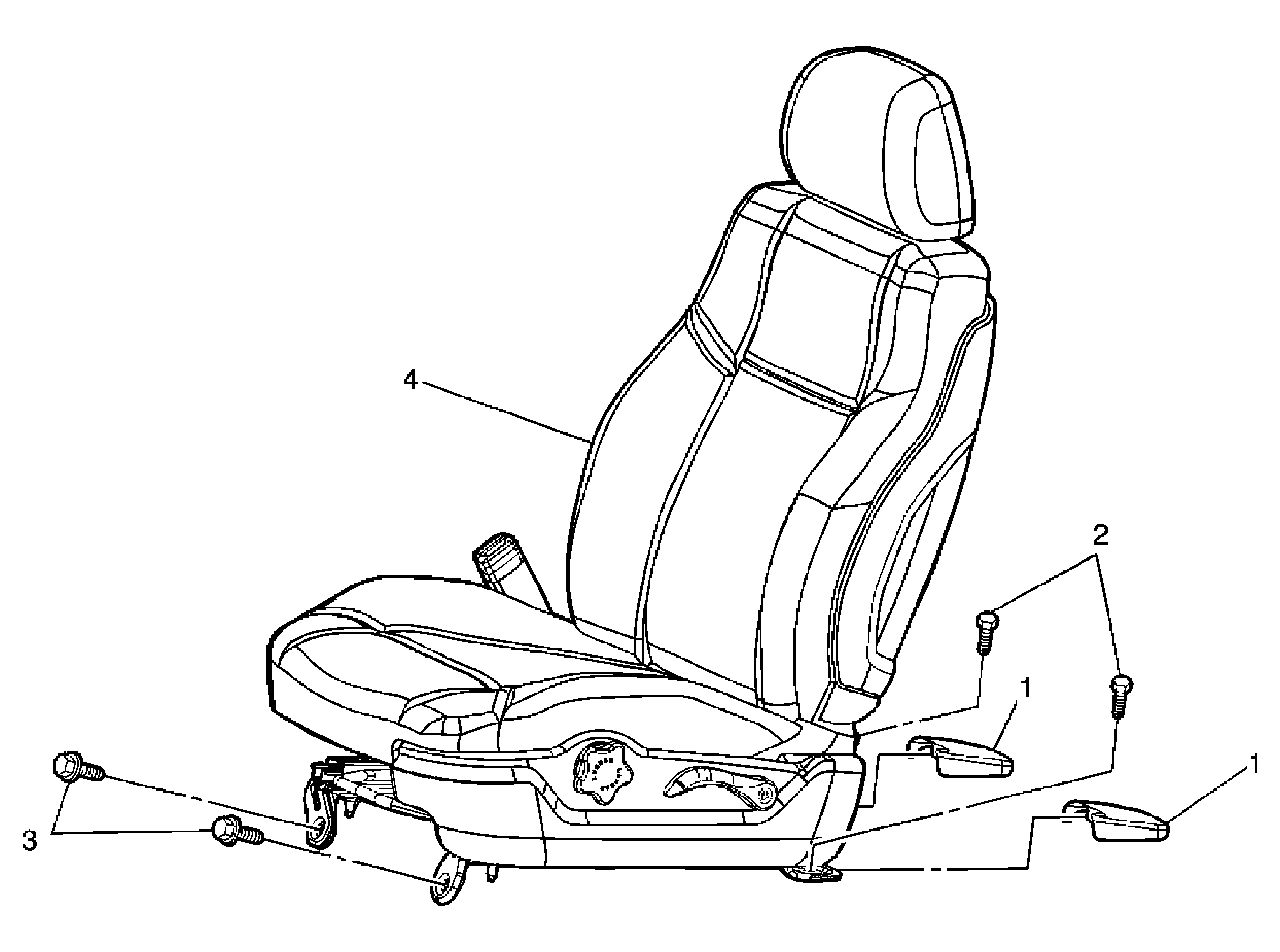

Fig 1: Front Seat - Bucket
GM1552283Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Seat Adjuster Cover (Qty: 2)
2 Seat Assembly Bolt (Qty: 2)
CAUTION: Refer to Fastener Caution .

Tighten:  52 N.m (38 lb ft)
3 Seat Assembly Bolt (Qty: 2)

Tighten:  52 N.m (38 lb ft)
4 Front Seat Assembly
Tip:  Disconnect the front seat electrical connector, and passenger presence system connector, if equipped.
