Installation Procedure

WARNING: This page is about a different variant/trim than selected.
  1. Assemble the control lever housing if previously disassembled. Refer to Shift Control Housing Assemble .
  2. Remove the masking from the control lever opening and ensure the sealing surface is clean and dry.

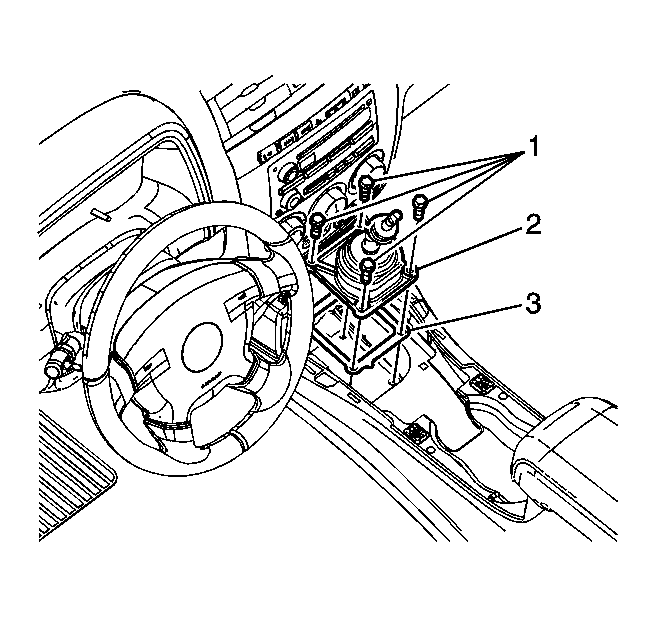

    3. Fig 1: Control Lever Housing Assembly
    GM1563260Courtesy of GENERAL MOTORS CORP.
  3. Place the control lever gasket (3) on to the transmission.
  4. Position the control lever housing assembly (2) to the control lever assembly opening, aligning the bushing with the internal shift control lever.
    5. CAUTION: Refer to Fastener Caution .
  5. Install the control lever housing assembly bolts (1).

    Tighten:  Tighten the bolts to 20 N.m (15 lb ft).

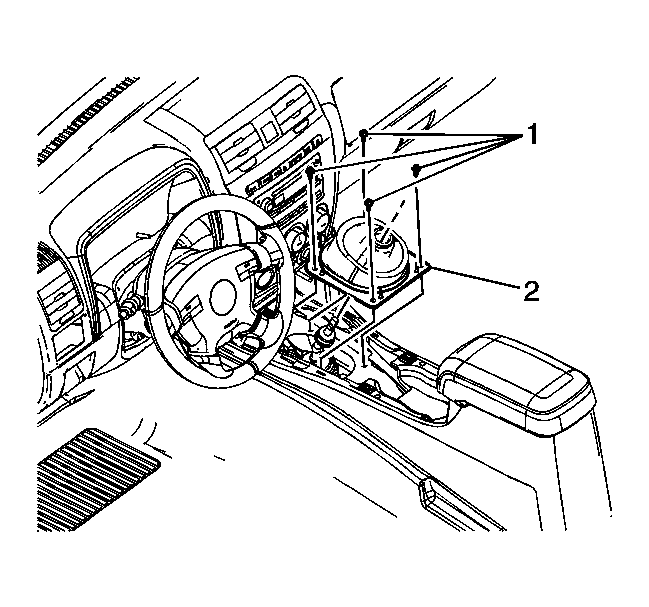

    6. Fig 2: Control Lever Boot & Screws
    GM1563256Courtesy of GENERAL MOTORS CORP.
  6. Slide the boot (2) into position over the control lever.
    7. NOTE: Ensure the carpet is not between the boot and the floor panel.
  7. Tilt the boot (2) in order to seat to the floor.
  8. Install the control lever boot screws (1).

    Tighten:  Tighten the screws to 2.5 N.m (22 lb in).

  9. Install the shift lever assembly. Refer to Shift Lever Assembly Replacement .
