Transmission Case Assemble — 2010 Hummer H3 Base, Automatic Service Manual

Transmission Case Assemble

WARNING: This page is about a different variant/trim than selected.
    Fig 1: Shift Shaft Plugs In Transmission Front Case
    GM880944Courtesy of GENERAL MOTORS CORP.
  1. If removed, apply threadlocker GM P/N 12345382 (Canadian P/N 10953489) to the shift shaft plugs.
  2. Using a suitable driver, install the shift shaft plugs into the transmission front case.

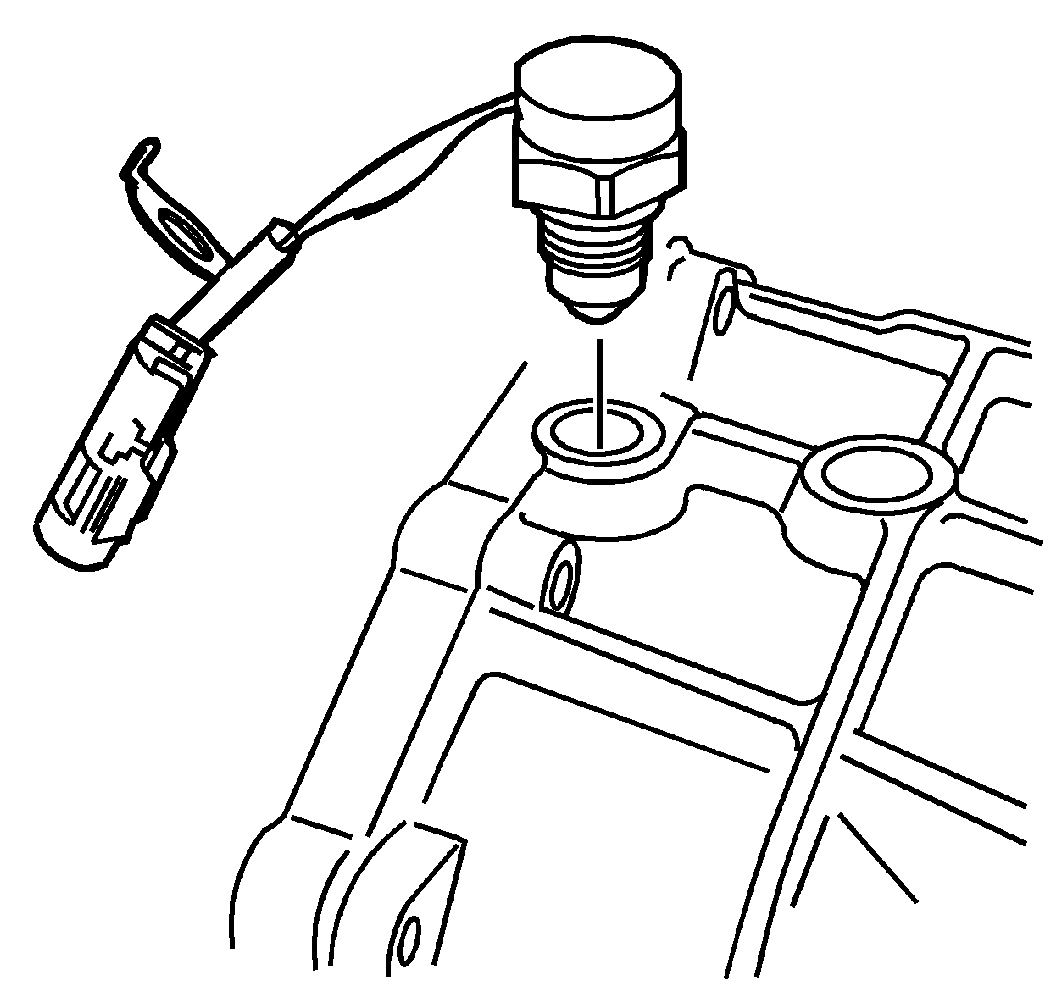

    3. Fig 2: Backup Lamp Switch
    GM880943Courtesy of GENERAL MOTORS CORP.
    CAUTION: Refer to Fastener Caution .
  3. Install the backup lamp switch, with the gasket, into the transmission case. Tighten the backup lamp switch to 44 N.m (32 lb ft).
