Removal Procedure — 2010 Hummer H3 Base, Automatic Service Manual

Removal Procedure

  1. Remove the seat from the vehicle. Refer to Front Seat Replacement - Bucket .
  2. Ensure that the seat is in the full rear position.

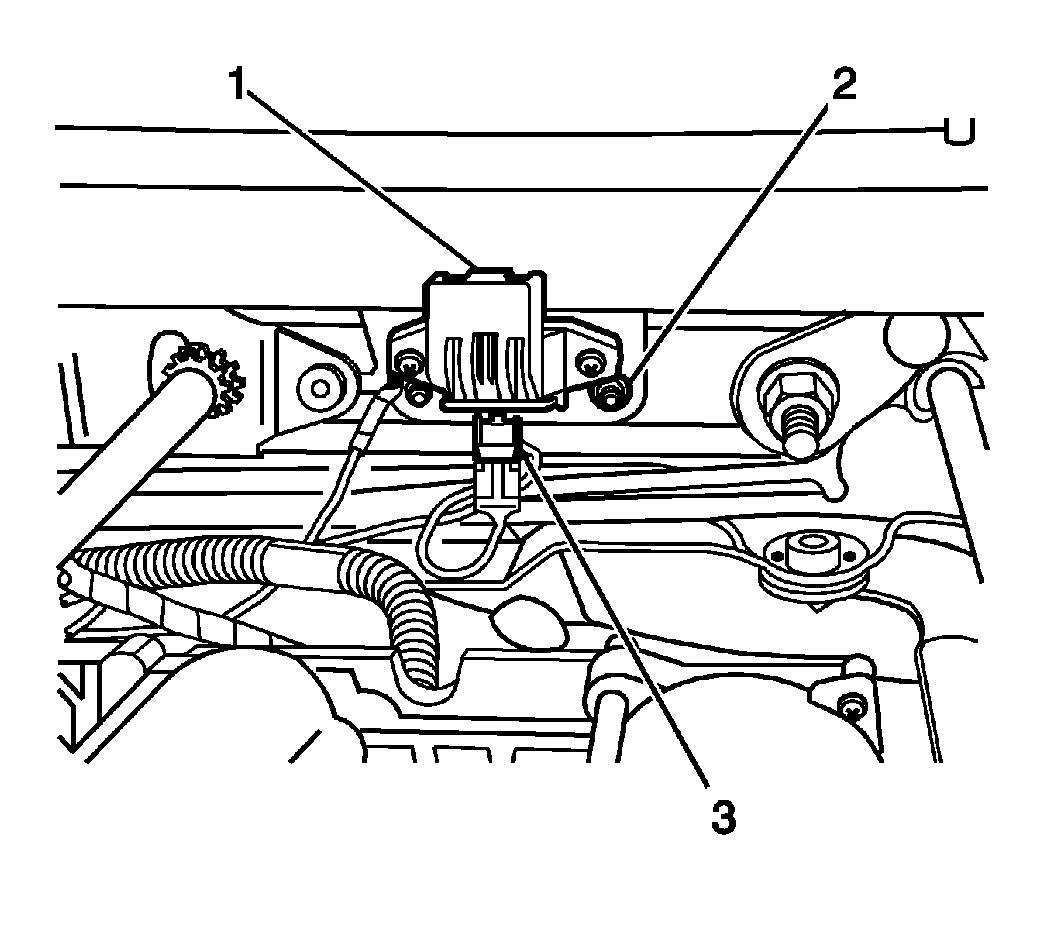

    3. Fig 1: Seat Position Sensor Components
    GM1334868Courtesy of GENERAL MOTORS CORP.
  3. Locate the seat position sensor (1) under the seat on the inside of the inner seat rail.
  4. Disconnect the electrical connector (3) from the seat position sensor (1).
  5. Remove the 2 screws that retain the seat position sensor to the seat rail.
  6. Remove the seat position sensor from the seat.
