Information On Inappropriate Warranty Claims Submitted For Damaged Radios And Instrument Panel Clusters (IPCS) (08-08-44-015H)
Publication date: 2016-12-19Reference number: 08-08-44-015H
Supersedes refnos: 08-08-44-015, 08-08-44-015B, 08-08-44-015C, 08-08-44-015D, 08-08-44-015E, 08-08-44-015F, 08-08-44-015G
INFORMATION ON INAPPROPRIATE WARRANTY CLAIMS SUBMITTED FOR DAMAGED RADIOS AND INSTRUMENT PANEL CLUSTERS (IPCS)
TECHNICAL SERVICE BULLETIN
| Affected Model(s): | 2017 and Prior GM Passenger Cars and Trucks |
| Attention: | This Bulletin also applies to any of the above models that may be Export from North America vehicles. |
| Supercedes: | This Bulletin has been revised to add more information to the Examples of Components section. Please discard Corporate Bulletin Number 08-08-44-015G. |
SERVICE INFORMATION
Radios, Integrated Center Stack bezels (ICS), and Instrument Panel Clusters (IPCs) have been returned to the Electronic Service Centers (ESCs) and suppliers with physical damage that makes problem analysis difficult and the root cause impossible to determine. Many of these parts have been submitted for warranty reimbursement when it is obvious that the damage is not covered under the terms of the GM New Vehicle Warranty.
Navigation Radios, Bezels, Radios and Instrument Panel Clusters (IPCs) with physical damage must be reviewed with the District Manager Aftersales (DMA) (U.S.) or District Manager-Customer Care and Service Process (DM-CCSP) (Canada) for appropriate coverage prior to obtaining a replacement unit under a warranty claim. The dealership must note the District Manager Aftersales (DMA) (U.S.) or District Manager-Customer Care and Service Process (DM-CCSP) (Canada) approval on the R.O. along with the reason for the goodwill assistance.
| Labor Code | Description | Part Number | Transaction Type | Labor Time | Cust Enthusiasm |
|---|---|---|---|---|---|
| 3431030 | Instrument Cluster, Replace | 12345678 | ZREG | 0.4 | X |
A Customer Enthusiasm repair is performed when the failure is determined not to be a defect in material and workmanship, but the Service Agent would like to cover the repair because of customer loyalty. Normally these repairs would be the owner's responsibility, but GM has decided to participate in the repair to create customer enthusiasm. In these instances, when the transaction is being submitted, Service Agents must select the "Customer Enthusiasm" check box. This warranty repair must be very well documented by service management in this Complaint, Cause and Correction fields.
If a damaged unit is being exchanged outside of warranty, contact the ESC directly and state that it is not a warranty claim. Refer to the latest version of Corporate Bulletin Number 08-08-44-029 for ESC contact information.
EXAMPLES OF COMPONENTS WITH NON-WARRANTABLE DAMAGE
The following illustrations show damaged components that should not be repaired under terms of the GM New Vehicle Warranty.
- The illustration above shows an IPC with a cracked lens.

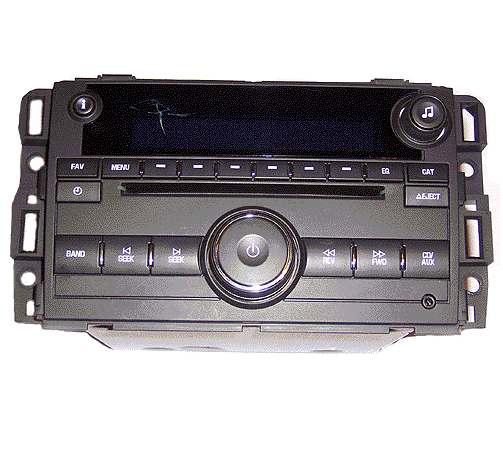

- The illustration above shows a radio with a cracked display window.

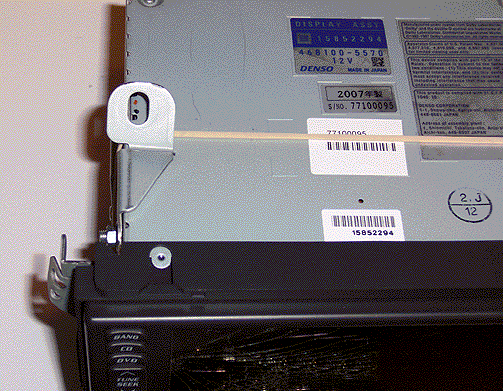

- The illustration above shows a radio with damaged mounting tabs.

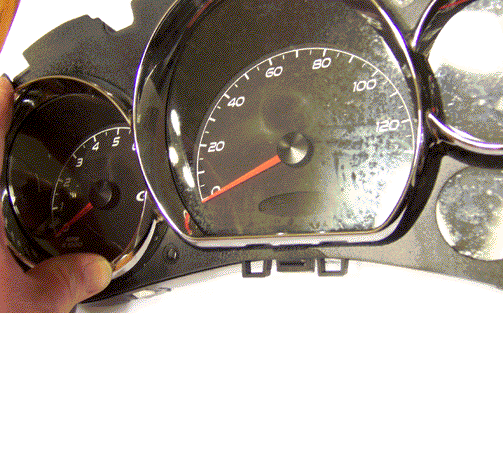

- The illustration above shows an IPC with chemical damage to the lens.

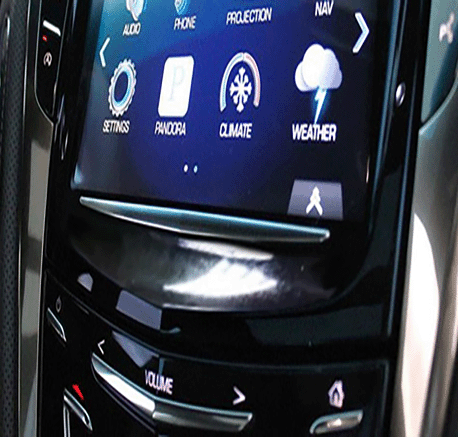

- The illustration above shows an ICS bezel with chemical damage to the clear coat.
- The illustration above shows a navigation radio with a cracked display window.
