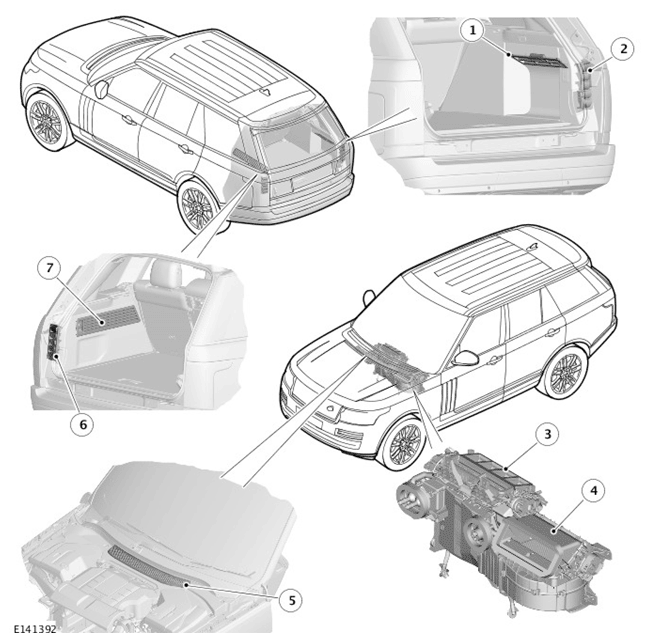

Component Location
NOTE:
RHD (right-hand drive) installation shown, LHD (left-hand drive) installation similar.
| ITEM |
DESCRIPTION |
| 1 |
Air extraction grille |
| 2 |
Ventilation outlet |
| 3 |
Climate control assembly |
| 4 |
Air intake duct |
| 5 |
Air intake grille |
| 6 |
Ventilation outlet |
| 7 |
Air extraction grille |
