Removal And Installation: Installation

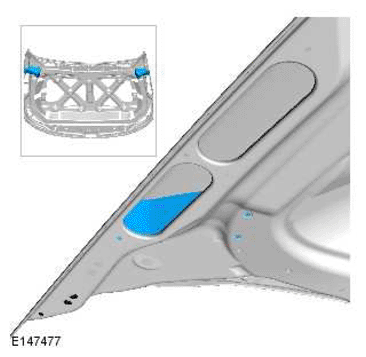

Install new noise, vibration and harshness pads as shown and then pierce the bag to fill the void.
- To install, reverse the removal procedure
-
NOTE: Check the gap and profiles of the hood are correct.

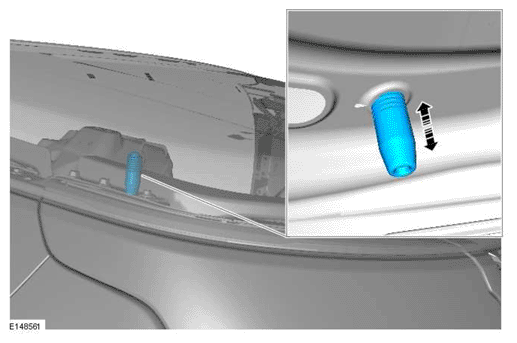

After the gaps and profiles have been set, make sure that the Adjustable Rubber Bump Stops are in contact with the body
Refer to: BODY AND FRAME .
-

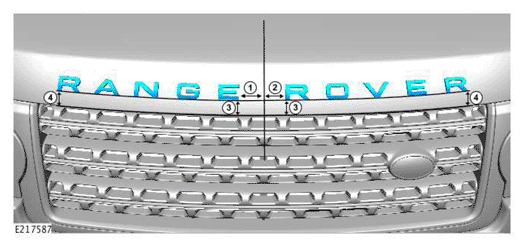

CAUTION: Using the center of the grill as a starting point, install the hood badge to the dimensions shown.
- Clean the area prior to installation of the new hood badge.
- 1 - 48.53 mm
- 2 - 41.65 mm
- 3 - 30.63 mm
- 4 - 30 mm
