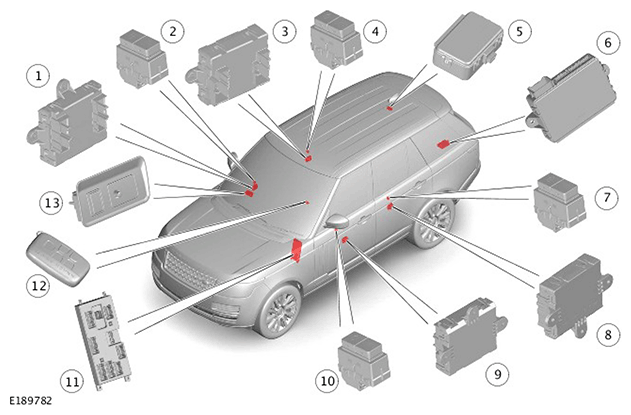

Component Location - 2 Of 5
NOTE:
Right Hand Drive (RHD) shown, Left Hand Drive (LHD) is similar.
| ITEM | DESCRIPTION |
|---|---|
| 1 | Driver Door Module (DDM) |
| 2 | Central Door Locking (CDL) lock/unlock switch - driver door |
| 3 | Rear Door Module (RDM) - right |
| 4 | Central Door Locking (CDL) lock/unlock switch - rear right door |
| 5 | Radio Frequency (RF) receiver |
| 6 | Remote Function Actuator (RFA) |
| 7 | Central Door Locking (CDL) lock/unlock switch - rear left door |
| 8 | Rear Door Module (RDM) - left |
| 9 | Passenger Door Module (PDM) |
| 10 | Central Door Locking (CDL) lock/unlock switch - passenger door |
| 11 | Body Control Module/Gateway Module (BCM/GWM) assembly |
| 12 | Smart key |
| 13 | Tailgate open switch - instrument panel |
