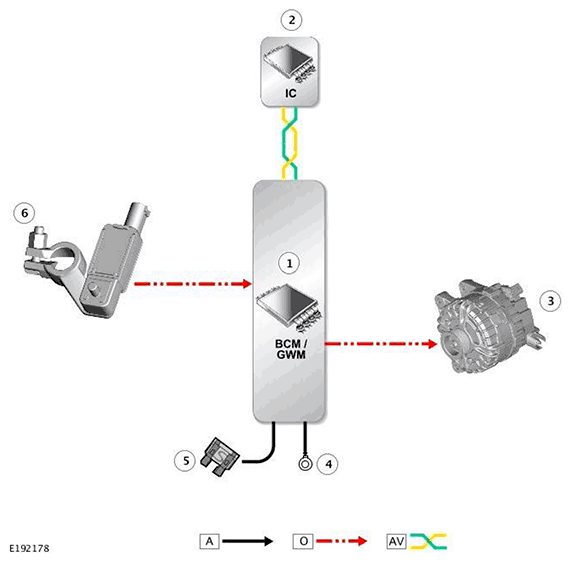

Control Diagram
A = HARDWIRED; O = LOCAL INTERCONNECT NETWORK (LIN) BUS; AV = HIGH SPEED (HS) CONTROLLER AREA NETWORK (CAN) COMFORT BUS.
| ITEM | DESCRIPTION |
|---|---|
| 1 | Body Control Module/Gateway Module (BCM/GWM) assembly |
| 2 | Instrument Cluster (IC) |
| 3 | Generator |
| 4 | Ground |
| 5 | Power supply |
| 6 | Battery Monitoring System (BMS) control module |
