Transmission - V8 N/A 5.0L Petrol / V8 S/C 5.0L Petrol (Installation): Installation: Part(S)

STEP PART NAME QUANTITY
Step 4 Transfer case input shaft oil seal 1
Step 18 Torque converter bolts 4
Step 21 Transmission casing O-ring seals 2
Step 28 Retaining clip 3
NOTE:
  • Some variation in the illustrations may occur, but the essential information is always correct.
  • Some illustrations may show the transmission removed for clarity.
  1. NOTE: This step is only required if a new component is installed.
    G11599795

    Remove the torque converter retainer.

  2. NOTE: Make sure that the torque converter is fully engaged to the transmission.
    G11607374
  3. CAUTION: Oil seals must be fitted dry.
    NOTE:
    • This step is only required if previously removed.
    • Make sure that this component is installed to the noted removal position.
    G11600234

    Special Tool(s): 308-598

  4. NOTE: Install a new O-ring seal.
    G11599797

    Renew Part: Transfer case input shaft oil seal  Quantity: 1  .

  5. G11599796
    • Special Tool(s): 303-1069
    • Clean the component mating face.
    • Lubricate input shaft splines with 'Weicon TL7391' grease.
    • Torque Specification: 45 Nm
  6. G11599841
  7. G11700112
  8. G11700111
  9. G11700314

    Torque Specification: 8 Nm

  10. CAUTION:
    • To prevent water ingress and subsequent transmission damage, make sure that the breather is fully pushed home into the transmission casing. The white line around the circumference of the pipe should not be visible when correctly installed.
    • Remove the blanking plugs.
    G11599840
  11. WARNING: Make sure that the transmission is secured with suitable retaining straps.
    CAUTION:
    • Apply grease of the correct specification to the torque converter spigot.
    • Make sure the torque converter remains connected to the transmission.
    G11599851

    Using a suitable hydraulic jack, support the transmission.

  12. G11700108

    Torque Specification: 40 Nm

  13. G11700107

    Torque Specification: 40 Nm

  14. G11700319

    Torque Specifications:

    M8 20 Nm

    M6 10 Nm

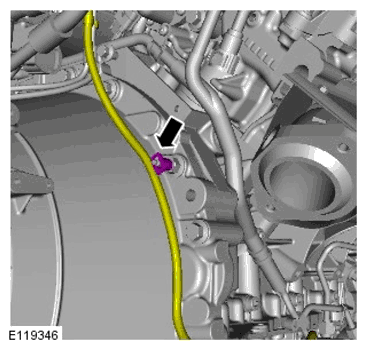

  15. G11599789

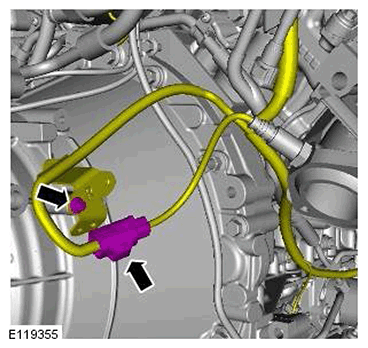

  16. G11691234

    Torque Specification: 10 Nm

  17. G11606809

    Torque Specification: 10 Nm

  18. CAUTION:
    • Only rotate the crankshaft clockwise.
    • Install new bolts
    G11700101

    Renew Part: Torque converter bolts  Quantity: 4  .

    Torque Specification: 63 Nm

  19. G11700324
  20. G11700099

    Torque Specification: 15 Nm

  21. CAUTION:
    • Be prepared to collect escaping fluids.
    • Install new o-ring seals
    G11599776

    Renew Part: Transmission casing O-ring seals  Quantity: 2  .

    Torque Specification: 22 Nm

  22. G11700097

    Torque Specification: 25 Nm

  23. G11699981

    Torque Specification: 60 Nm

  24. G11700000
  25. G11699999

    Torque Specification: 9 Nm

  26. G11699976

    Support the transmission.

  27. G11700047

    Torque Specification: 9 Nm

  28. NOTE: Install new retaining clips.
    G11700288

    Renew Part: Retaining clip  Quantity: 3  .

    Torque Specification: 9 Nm

  29. Refer to: REAR DRIVESHAFT - V6 S/C 3.0L PETROL/V8 N/A 5.0L PETROL/V8 S/C 5.0L PETROL .
  30. Refer to: FRONT DRIVESHAFT - V6 S/C 3.0L PETROL/V8 N/A 5.0L PETROL/V8 S/C 5.0L PETROL .
  31. Lower the vehicle.
  32. G11709188
    • Special Tool(s): 303-1143
    • Special Tool(s): 303-1142
    • Torque Specification:  65 Nm
  33. Refer to: AIR CLEANER OUTLET PIPE T-CONNECTOR .
  34. Install the battery ground cable.

    Refer to: SPECIFICATIONS .

  35. Carry out a transmission fluid level check.

    Refer to: TRANSMISSION FLUID LEVEL CHECK - V8 N/A 5.0L PETROL / V8 S/C 5.0L PETROL .
