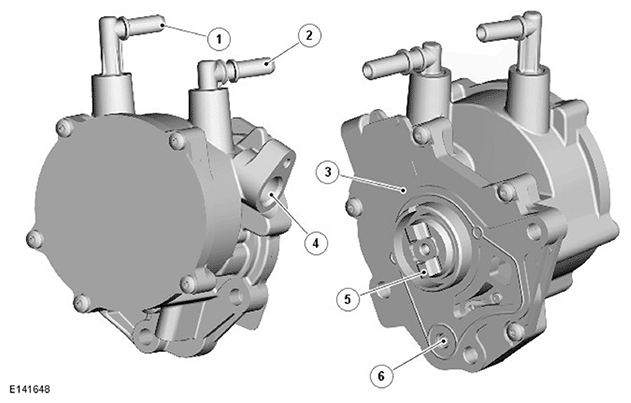

Vacuum Pump — 2015 Land Rover Range Rover Supercharged Service ManualVacuum Pump
TDV6 3.0L Diesel Engine
| ITEM |
DESCRIPTION |
| 1 |
Vacuum connection for exhaust gas recirculation/turbocharger control systems |
| 2 |
Vacuum connection for brake booster |
| 3 |
Gasket |
| 4 |
Oil scavenge connection |
| 5 |
Drive coupling |
| 6 |
Oil inlet |
