Removal And Installation: Removal
NOTE:
- Removal steps in this procedure may contain installation details.
- Some variation in the illustrations may occur, but the essential information is always correct.
- Remove the secondary bulkhead left panel.
Refer to: SECONDARY BULKHEAD LEFT PANEL .
- Remove the brake master cylinder.
Refer to: BRAKE MASTER CYLINDER - LHD .
Release the instrument panel lower section.
Remove the brake booster push rod clevis pin.

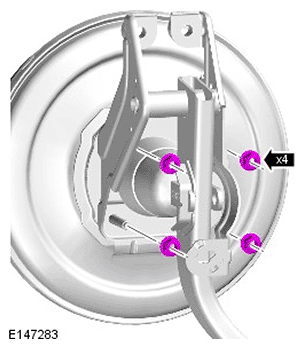

- Release the retaining nut.
- Torque Specification: 25 Nm

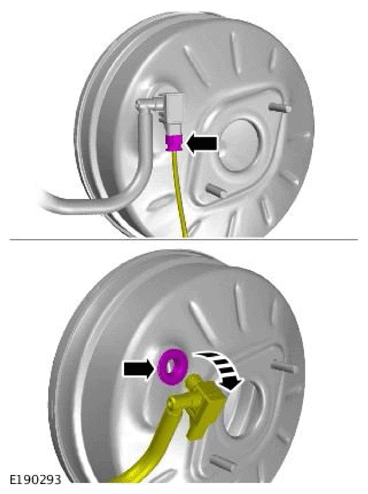

Release the brake booster vacuum hose.
-
CAUTION: Care must be taken not to damage the component.
Release the brake lines.
Remove the brake booster.
