Wiper Linkage

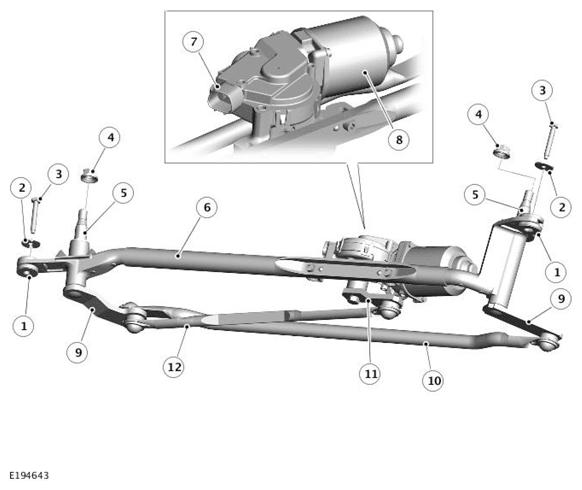

| ITEM | DESCRIPTION |
|---|---|
| 1 | Bush (2 off) |
| 2 | Washer (2 off) |
| 3 | Bolt (2 off) |
| 4 | Self-locking nut (2 off) |
| 5 | Pivot housing assembly |
| 6 | Tube |
| 7 | Electrical connector |
| 8 | Windshield wiper motor |
| 9 | Crank (2 off) |
| 10 | Tube |
| 11 | Motor crank |
| 12 | Link rod |
The wiper linkage assembly is located below the plenum grill in the engine compartment and is secured with bushes, sleeves and bolts. The rubber bushes isolate the assembly from the body mountings.
The linkage assembly comprises a main tube, with a pivot housing at each end. A bracket is attached, offset along the tube length, which locates the motor assembly. A motor crank is positively attached to the motor output shaft. A link rod is connected to the motor crank and is connected at the opposite end to the right pivot housing, via a crank. The right link rod has a pivot attachment for the left link rod, which is connected at its opposite end to the right pivot housing, via a second crank.
The motor crank converts rotary motion from the motor output shaft into linear movement of the link rods. The cranks, connected between the each link rod and pivot housing, convert the linear motion back to rotary motion of the pivot housing. This rotary motion is passed to the wiper arms and blades causing the blades to wipe an arc across the windscreen.
