Intermittent Steering Wheel Switch Operation (LTB00584V4)

WARNING: This page is about the Range Rover Base, which is a different variant/trim than selected.
Publication date: 2015-10-21
Reference number: LTB00584V4
Supersedes refnos: LTB00584NAS1, LTB00584NAS2

INTERMITTENT STEERING WHEEL SWITCH OPERATION

INTERMITTENT STEERING WHEEL SWITCH OPERATION

TECHNICAL SERVICE BULLETIN

Reference Number(s): LTB00584NAS4, Date of Issue:  April 25, 2016
LAND ROVER: 2012-2015 LR2 (LF), LR4 (LA), Range Rover Evoque (LV); 2013-2015 Range Rover (LG); 2014-2015 Range Rover Sport (LW)
SECTION: 501-00
AFFECTED VEHICLES: LR2 (LF) Model Year: 2012-2015 VIN: 272671-911841 Assembly Plant: Halewood; LR4 (LA) Model Year: 2012-2015 VIN: 596988-777462 Assembly Plant: Solihull; Range Rover Evoque (LV) Model Year: 2012-2015 VIN: 000447-920441 Assembly Plant: Halewood; Range Rover Sport (LW) Model Year: 2014-2015 VIN: 001154-516683 Assembly Plant: Solihull; Range Rover (LG) Model Year: 2013-2015 VIN: 001204-212940 Assembly Plant: Solihull

MARKETS

NAS

CONDITION SUMMARY

Situation:  The steering wheel left-hand and/or right-hand switches (volume, seek, OK/menu, mode, phone, voice, and cruise control) and transmission paddle switches may exhibit intermittent operation, causing one or more (list not exhaustive) of the following issues:

  • Audio volume will not adjust (up and/or down)
  • Radio seek buttons will not operate
  • Volume control buttons cause the radio station to change
  • The Infotainment System is slow to operate (blank screen followed by the 'Land Rover' logo)
  • Diagnostic Trouble Code (DTC) U2013-02 'Switch pack, general signal failure' is stored in the Instrument Cluster memory
  • DTC B1D21-13 'Remote control switch circuit open' is stored in the Touch Screen memory
  • Transmission paddle switches inoperative or intermittent functionality
  • Cruise control inoperative

Cause:  This may be caused by poor electrical connection continuity.

Action:  Should a customer express any of these concerns, follow the appropriate Service Instruction [A, B, or C] outlined below.

PARTS

PARTS INFORMATION

LR054614 Nyogel electrical lubricant Quantity: 1

TOOLS

Refer to Workshop Manual for any required special tools.

WARRANTY

NOTE: Repair procedures are under constant review, and therefore times are subject to change; those quoted here must be taken as guidance only. Always refer to TOPIx to obtain the latest repair time.
NOTE: DDW requires the use of causal part numbers. Labor only claims must show the causal part number with a quantity of zero.
DESCRIPTION SRO TIME (HOURS) CONDITION CODE CAUSAL PART
Apply electrical contact lubricant - LR2 (L359), LR4 (L319) 86.71.89.49  0.3 42 LR034960
Apply electrical contact lubricant - Range Rover Evoque (L538) 86.71.89.49  0.4 42 LR034960
Apply electrical contact lubricant - Range Rover Sport (L494), Range Rover (L405) 86.71.89.49  0.3 42 LR034960
NOTE: Normal Warranty procedures apply.

COMPONENT LOCATION

NOTE: Range Rover Sport (L494; right-hand drive [RHD]) shown; others similar.
  1. Component location.
    G10378770

SERVICE INSTRUCTION A

Service Instruction A - LR2 (L359) and LR4 (L319) only

  1. Remove the driver airbag module (see TOPIx Workshop Manual section 501-20B: Supplemental Restraint System).
    NOTE: Wipe away any excess Nyogel.
  2. Disconnect the clockspring connector (see TOPIx Workshop Manual section 211-04: Steering Column - Steering Wheel).
    • Disconnect and reconnect the electrical connector two times to clean the contact points.
    • Disconnect the electrical connector and apply the Nyogel to the front of the harness connector and reconnect.
      G10378771
    NOTE: Wipe away any excess Nyogel.
  3. Remove steering wheel left-hand switch (see TOPIx Workshop Manual section 211-04: Steering Column).
    • Disconnect and reconnect the electrical connector two times to clean the contact points.
    • Disconnect the electrical connector and apply the Nyogel to the front of the harness connector and reconnect.
      G10378772
    NOTE: Wipe away any excess Nyogel.
  4. Remove steering wheel right-hand switch (see TOPIx Workshop Manual section 211-04: Steering Column).
    • Disconnect and reconnect the electrical connector two times to clean the contact points.
    • Disconnect the electrical connector and apply the Nyogel to the front of the harness connector and reconnect.
      G10378773
  5. Install the driver airbag module (see TOPIx Workshop Manual section 501-20B: Supplemental Restraint System).

SERVICE INSTRUCTION B

Service Instruction B - Range Rover Evoque (L538) only

  1. Remove the driver airbag module (see TOPIx Workshop Manual section 501-20B: Supplemental Restraint System).
  2. Disconnect the steering wheel electrical harness from the clockspring
    • Disconnect and reconnect the electrical connectors two times to clean the contact points.
      G10378774
    NOTE: Only if fitted.
  3. If fitted, remove the transmission paddle switches from the steering wheel.
    • Disconnect and reconnect the electrical connectors two times to clean the contact points.
      G10378775

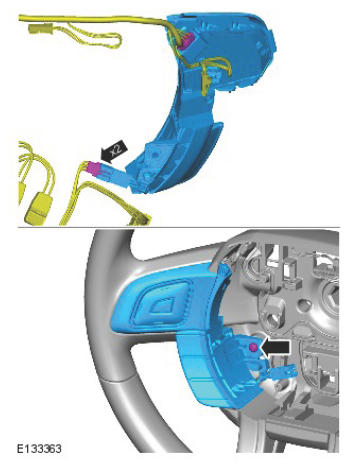

  4. Remove the steering wheel left-hand switch.
    • Disconnect and reconnect the electrical connectors two times to clean the contact points.
      G10378776

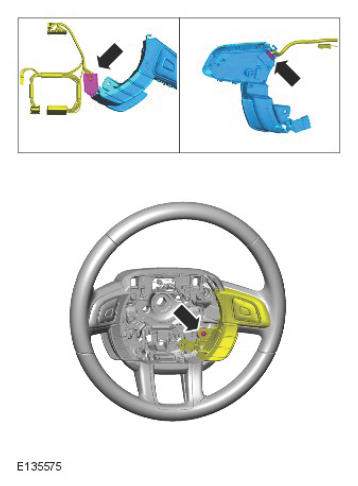

  5. Remove the steering wheel right-hand switch.
    • Disconnect and reconnect the electrical connectors two times to clean the contact points.
      G10378777
    NOTE: Wipe away any excess Nyogel.
  6. Apply Nyogel to the electrical connectors shown.
    G10378778
    NOTE: Right-hand switch shown; left-hand switch similar.
    NOTE: Wipe away any excess Nyogel.
  7. Apply Nyogel to the electrical connectors for the transmission left-hand and right-hand paddle switches.
    G10378779
  8. To install, reverse steps  1 -  5.

SERVICE INSTRUCTION C

Service Instruction C - Range Rover Sport (L494) and Range Rover (L405) only

  1. Remove the driver airbag module (see TOPIx Workshop Manual section 501-20B: Supplemental Restraint System).
  2. Remove the lower section of steering column cowling (see TOPIx Workshop Manual section 211-05: Steering Column Switches).
    NOTE: Vehicles with heated steering wheel only.
  3. Remove the two heated steering wheel connectors.
    • Disconnect and reconnect the electrical connectors two times to clean the contact points.
      G10378780
    NOTE: Make sure there is an even covering of Nyogel on the contact surface.
  4. Disconnect the clockspring electrical connector.
    • Disconnect and reconnect the electrical connector two times to clean the contact points.
    • Disconnect the electrical connector and apply the Nyogel to the front of the harness connector and reconnect.
      G10378781
    NOTE: Wipe away any excess Nyogel.
  5. Remove steering wheel left-hand switch (see TOPIx Workshop Manual section 211-04: Steering Column).
    • Disconnect and reconnect the electrical connector two times to clean the contact points.
    • Disconnect the electrical connector and apply the Nyogel to the front of the harness connector and reconnect.
      G10378782
    NOTE: Wipe away any excess Nyogel.
  6. Remove steering wheel right-hand switch (see TOPIx Workshop Manual section 211-04: Steering Column - Steering Wheel).
    • Disconnect and reconnect the electrical connector two times to clean the contact points.
    • Disconnect the electrical connector and apply the Nyogel to the front of the harness connector and reconnect.
      G10378783
    NOTE: Wipe away any excess Nyogel.
  7. Disconnect the connector behind the turn signal indicator stalk.
    • Disconnect and reconnect the electrical connector two times to clean the contact points.
    • Disconnect the electrical connector and apply the Nyogel to the front of the harness connector and reconnect.
      G10378784
  8. Reverse steps  1 -  2.
