Tailgate Fouls D Post Exterior Trim (LTB00926NAS1) — 2015 Land Rover Range Rover Supercharged Service Manual

Tailgate Fouls D Post Exterior Trim (LTB00926NAS1)

WARNING: This page is about the Range Rover Base, which is a different variant/trim than selected.
Publication date: 2016-03-30
Reference number: LTB00926NAS1

TAILGATE FOULS D POST EXTERIOR TRIM

TAILGATE FOULS D POST EXTERIOR TRIM

TECHNICAL SERVICE BULLETIN

Reference Number(s): LTB00926NAS1, Date of Issue:  March 30, 2016
LAND ROVER: 2013-2016 Range Rover (LG); 2014-2016 Range Rover Sport (LW)
SECTION: 501-03
AFFECTED VEHICLES: Range Rover Sport (LW) Model Year: 2014-2016 VIN: 001154-578533 Assembly Plant: Solihull; Range Rover Sport (LW) Model Year: 2014-2016 VIN: 600009-648620 Assembly Plant: Solihull; Range Rover (LG) Model Year: 2013-2016 VIN: 001204-279810 Assembly Plant: Solihull

MARKETS

NAS

CONDITION SUMMARY

Situation:  The tailgate may contact D post exterior trim pieces when closed.

Cause:  This may be caused by the tailgate hinge fixings not being the preferred choice for application, potential relaxation.

Action:  Should a customer express this concern, follow the appropriate Service Instruction below.

PARTS

PARTS INFORMATION

RYG501160 Bolt & captive washer (M8x25) Quantity: 4

WARRANTY

NOTE: Repair procedures are under constant review, and therefore times are subject to change; those quoted here must be taken as guidance only. Always refer to TOPIx to obtain the latest repair time.
NOTE: DDW requires the use of causal part numbers. Labor only claims must show the causal part number with a quantity of zero.
WARRANTY INFORMATION

DESCRIPTION SRO TIME (HOURS) CONDITION CODE CAUSAL PART
Tailgate - Hinge - Bolts - Renew 76.19.11  01 07 LR037087
NOTE: Normal Warranty procedures apply.

SERVICE INSTRUCTION A: RANGE ROVER SPORT (L494) ONLY

NOTE: components shown removed for clarity.
  1. Open the tailgate.
  2. Remove the harness clips from the cover panel.
    G10364409
  3. Remove the trim.
    G10364410

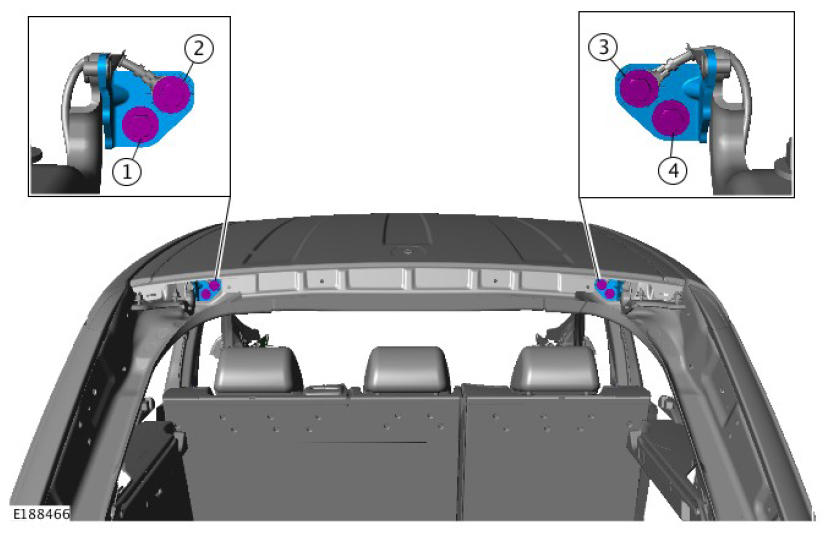

  4. Remove the tailgate hinge bolt 1.
    G10364411
  5. Install the new tailgate hinge bolt 1  (RGY501160).
    • Torque: 24 Nm
    G10364412
  6. Repeat steps  4- 5 for hinge bolt 2  .
  7. Repeat steps  4- 5 for hinge bolt 3  .
  8. Repeat steps  4- 5 for hinge bolt 4  .
  9. Install the trim.
    G10364413

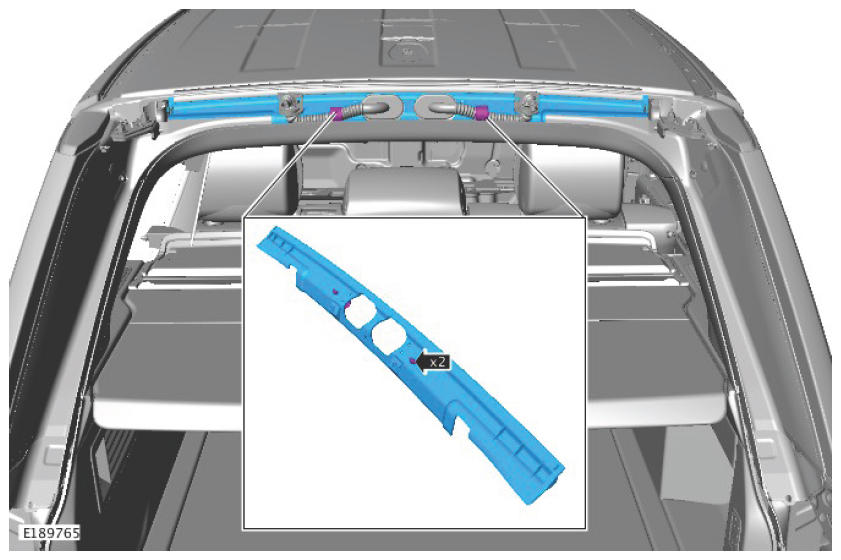

  10. Install the harness clips to the cover panel.
    G10364414
  11. Close the tailgate
    NOTE: the tailgate may also be referred to as liftgate.
  12. Check the tailgate alignment (see TOPIx Workshop Manual, section 501-03: Body Closures - Liftgate Alignment).

SERVICE INSTRUCTION B: RANGE ROVER (L405) ONLY

NOTE: components shown removed for clarity.
  1. Open the tailgate.
  2. Remove the harness clips from the cover panel.
    G10364415

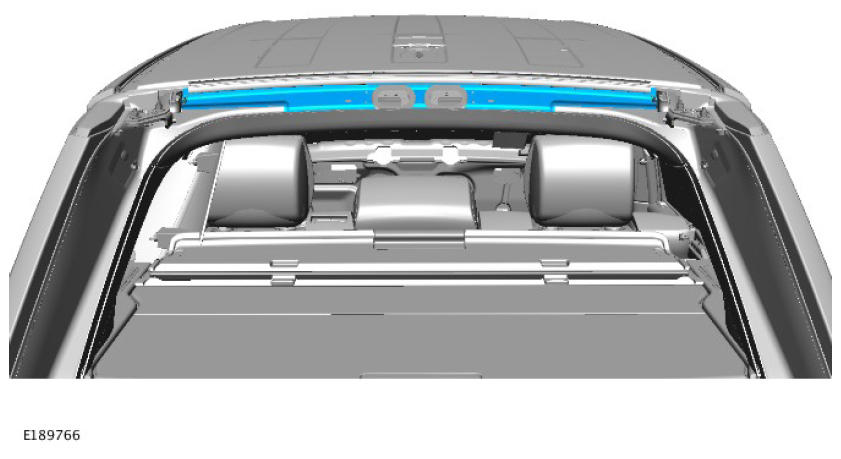

  3. Remove the cover panel.
    G10364416
  4. Remove the tailgate hinge bolt 1.
    G10364417
  5. Install the new tailgate hinge bolt 1  (RGY501160).
    • Torque: 24 Nm
    G10364418
  6. Repeat steps  4- 5 for hinge bolt 2  .
  7. Repeat steps  4- 5 for hinge bolt 3  .
  8. Repeat steps  4- 5 for hinge bolt 4  .
  9. Install the cover panel trim.
    G10364419
  10. Install the harness clips to the cover panel.
    G10364420
  11. Close the tailgate.
    NOTE: the tailgate may also be referred to as liftgate.
  12. Check the tailgate alignment (see TOPIx Workshop Manual, section 501-03: Body Closures - Liftgate Alignment).
