Expansion Valve, Removing And Installing: Removing

-- Remove the refrigerant lines with inner heat exchanger. Refer to REFRIGERANT LINES WITH INNER HEAT EXCHANGER, REMOVING AND INSTALLING .

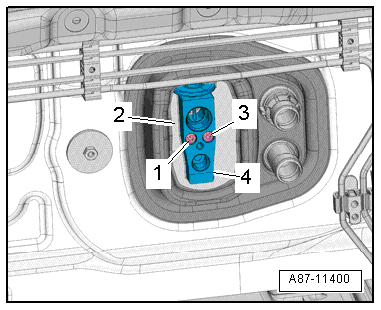

-- Remove the bolts -1 and 3-.

Courtesy of AUDI OF AMERICA, LLC

-- Remove the expansion valve -4- from the heat shield insulation -2-.

-- Seal the open lines and connections with clean plugs from the Engine Bung Set :VAS6122  .
