Overview - DENSO A/C Compressor Belt Pulley — 2015 Audi A3 Premium, 4D Sedan Service Manual

Overview - DENSO A/C Compressor Belt Pulley

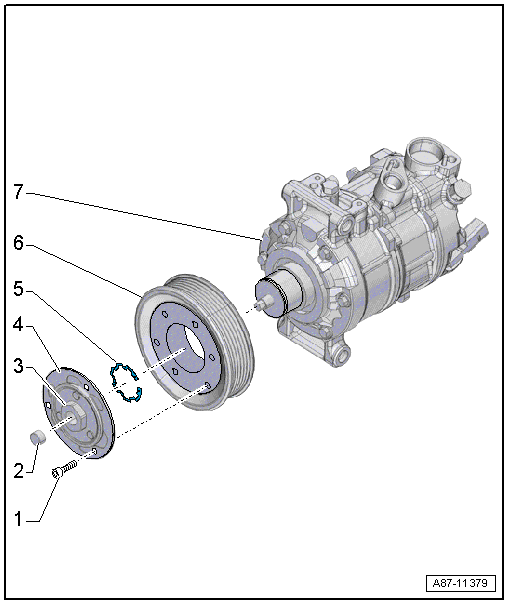

Fig 1: Exploded View Of - Denso A/C Compressor Belt Pulley

GWWA87-11379

Courtesy of AUDI OF AMERICA, LLC

Bolt
- 4.5 Nm
- Quantity: 3
Sealing Cap
Nut
- 25 Nm
Drive Plate
- The overload protection takes over when the torque is excessive (for example, if the A/C compressor runs with resistance) and the belt pulley runs freely without driving the A/C compressor.
Circlip
- Always replace
- Install on the proper side - the flat side faces A/C compressor
Belt Pulley
- There are different versions.
- Is sensitive to impact, be careful when handling
- Removing and installing. Refer to BELT PULLEY, REMOVING AND INSTALLING, DENSO A/C COMPRESSOR .
A/C Compressor
- Clean the A/C compressor driveshaft before setting the belt pulley on it
  NOTE:
  There are different versions depending on the refrigerant (R134a or R1234yf).
