Manual:HUMMER Hummer H3 Base 2010Page:6294 / 37523

Front Brake Caliper Hardware Replacement — 2010 Hummer H3 Base, Automatic Service Manual

Front Brake Caliper Hardware Replacement

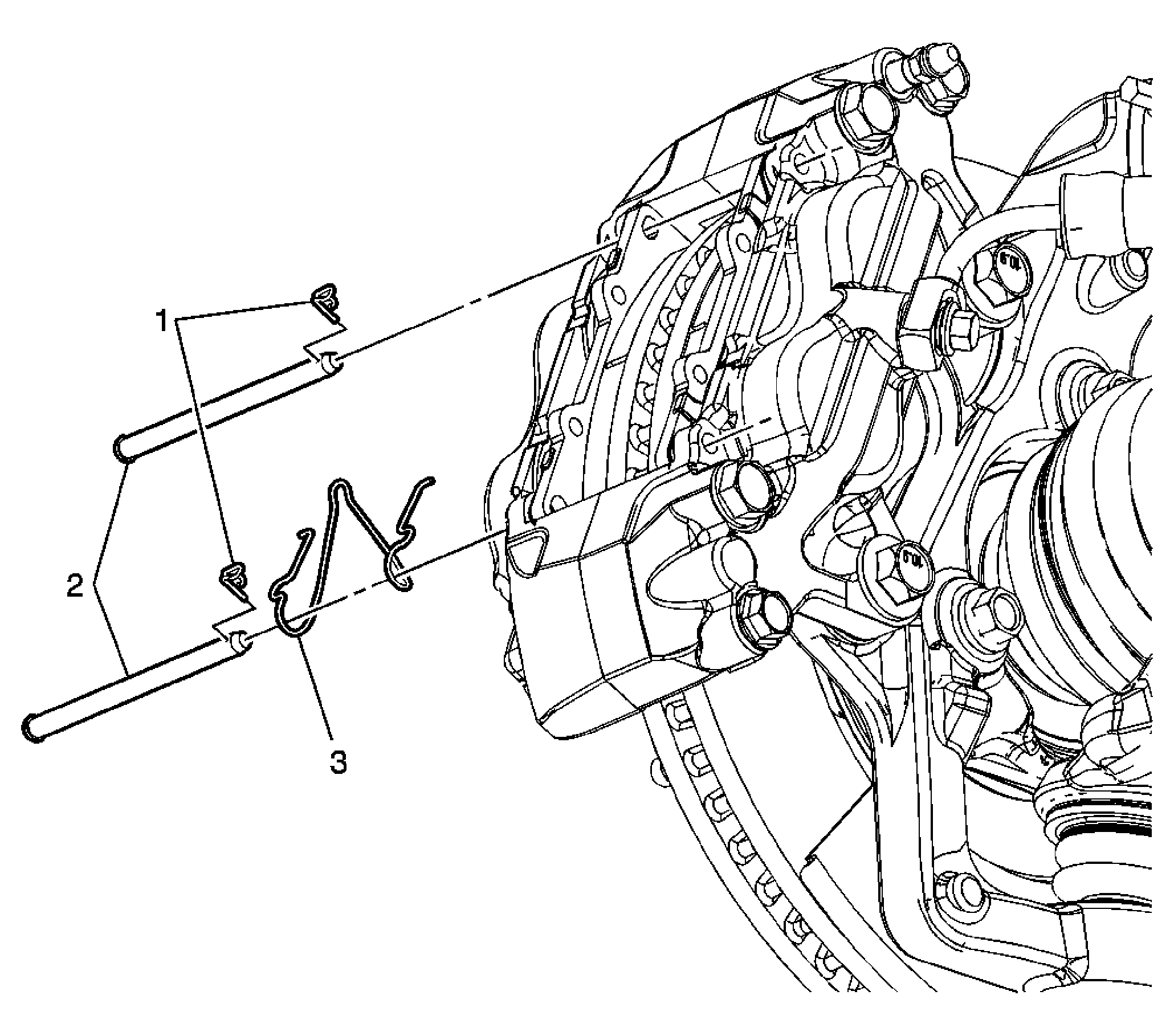

Fig 1: Front Brake Caliper Hardware

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
WARNING: Refer to Brake Dust Warning . WARNING: Refer to Brake Fluid Irritant Warning . Preliminary Procedure Raise and support the vehicle. Refer to Lifting and Jacking the Vehicle . Remove the tire and wheel. Refer to Tire and Wheel Removal and Installation .
1	Front Disc Brake Pad Retainer (Qty: 2)
2	Front Disc Brake Pad Pin (Qty: 2)
3	Front Disc Brake Caliper Damping Clip
