Rear Brake Caliper Hardware Replacement — 2010 Hummer H3 Base, Automatic Service Manual

Rear Brake Caliper Hardware Replacement

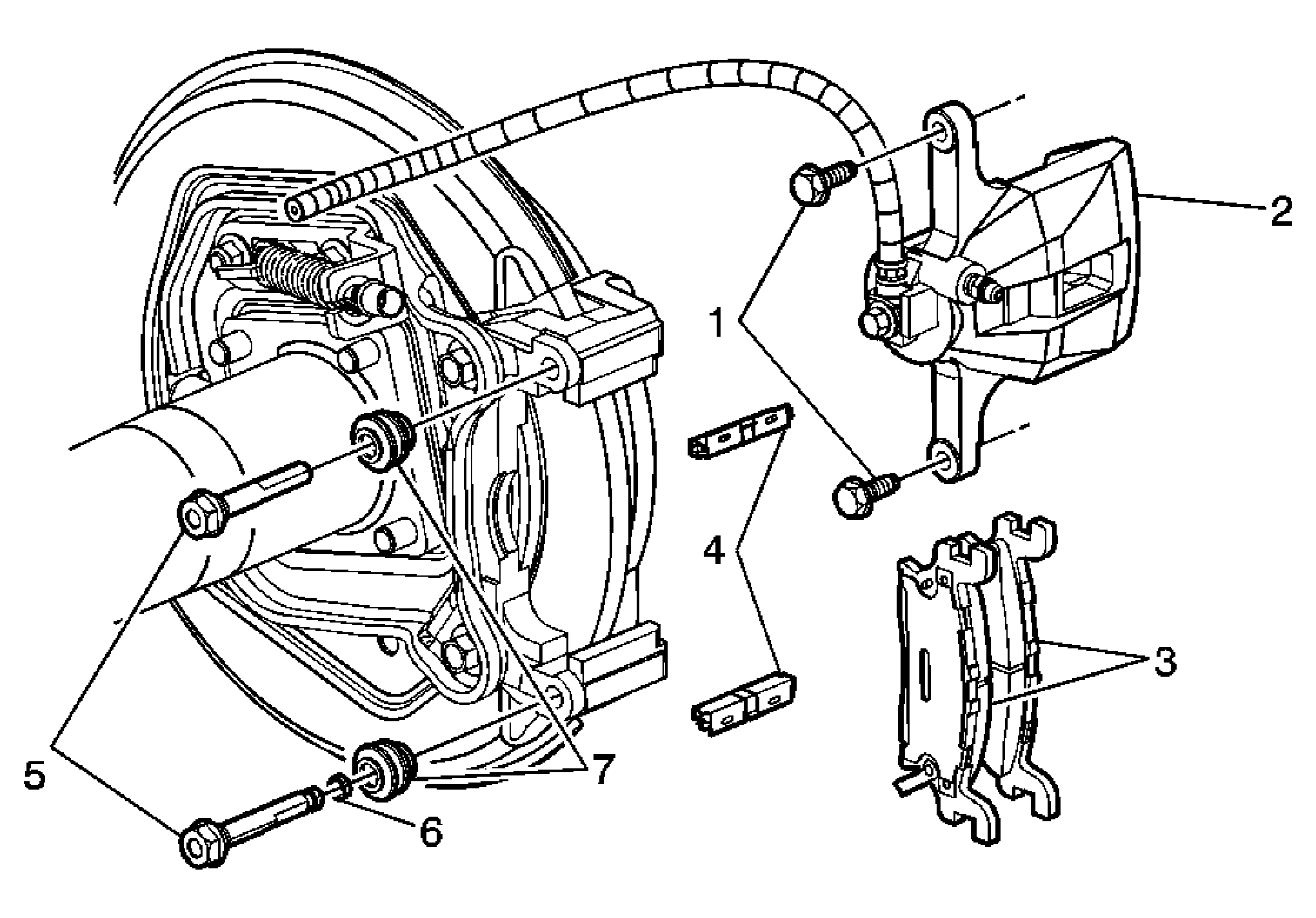

Fig 1: Rear Brake Caliper Hardware

GM1560800

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
WARNING: Refer to Brake Dust Warning . CAUTION: Refer to Brake Caliper Caution . Preliminary Procedure Raise and support the vehicle. Refer to Lifting and Jacking the Vehicle . Remove the tire and wheel. Refer to Tire and Wheel Removal and Installation .
1	Rear Brake Caliper Guide Pin Bolt (Qty: 2) CAUTION: Refer to Fastener Caution . Tip: DO NOT reuse the brake caliper bracket bolts. Replace with NEW bolts. Tighten: 36 N.m (27 lb ft)
2	Rear Disc Brake Caliper Tip: Do NOT disconnect the hydraulic brake flexible hose from the caliper.
3	Rear Disc Brake Pad (Qty: 2)
4	Rear Disc Brake Caliper Bracket Retainer (Qty: 2)
5	Rear Disc Brake Caliper Guide Pin (Qty: 2)
6	Rear Brake Caliper Guide Pin Seal
7	Rear Brake Caliper Guide Pin Boot (Qty: 2)
