Front Brake Rotor Replacement — 2010 Hummer H3 Base, Automatic Service Manual

Front Brake Rotor Replacement

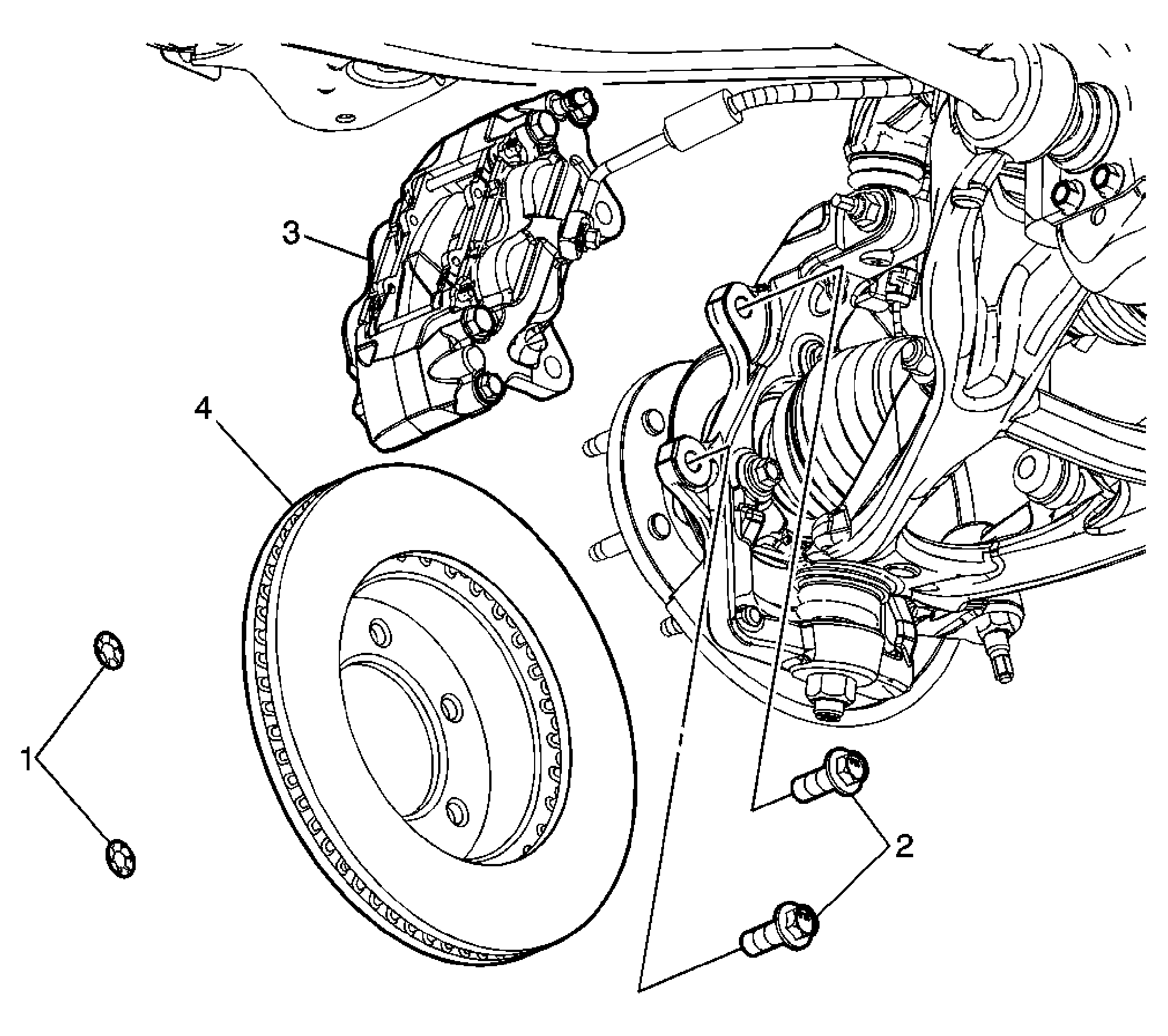

Fig 1: Front Brake Rotor

GM1556713

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
WARNING: Refer to Brake Dust Warning . WARNING: Refer to Brake Fluid Irritant Warning . CAUTION: Refer to Brake Caliper Caution . Preliminary Procedures Raise and support the vehicle. Refer to Lifting and Jacking the Vehicle . Remove the tire and wheel. Refer to Tire and Wheel Removal and Installation .
1	Front Disc Brake Rotor Retainer (Qty: 2)
2	Brake Caliper Bolt (Qty: 2) CAUTION: Refer to Fastener Caution . Tighten: 195 N.m (144 lb ft)
3	Front Brake Caliper Tip: Do NOT disconnect the hydraulic brake flexible hose from the caliper.
4	Front Brake Rotor Tip: Road test the vehicle in order to burnish the brake pads. Refer to Brake Pad and Rotor Burnishing .
