Radiator Outlet Hose Replacement (LLR) — 2010 Hummer H3 Base, Automatic Service Manual

Radiator Outlet Hose Replacement (LLR)

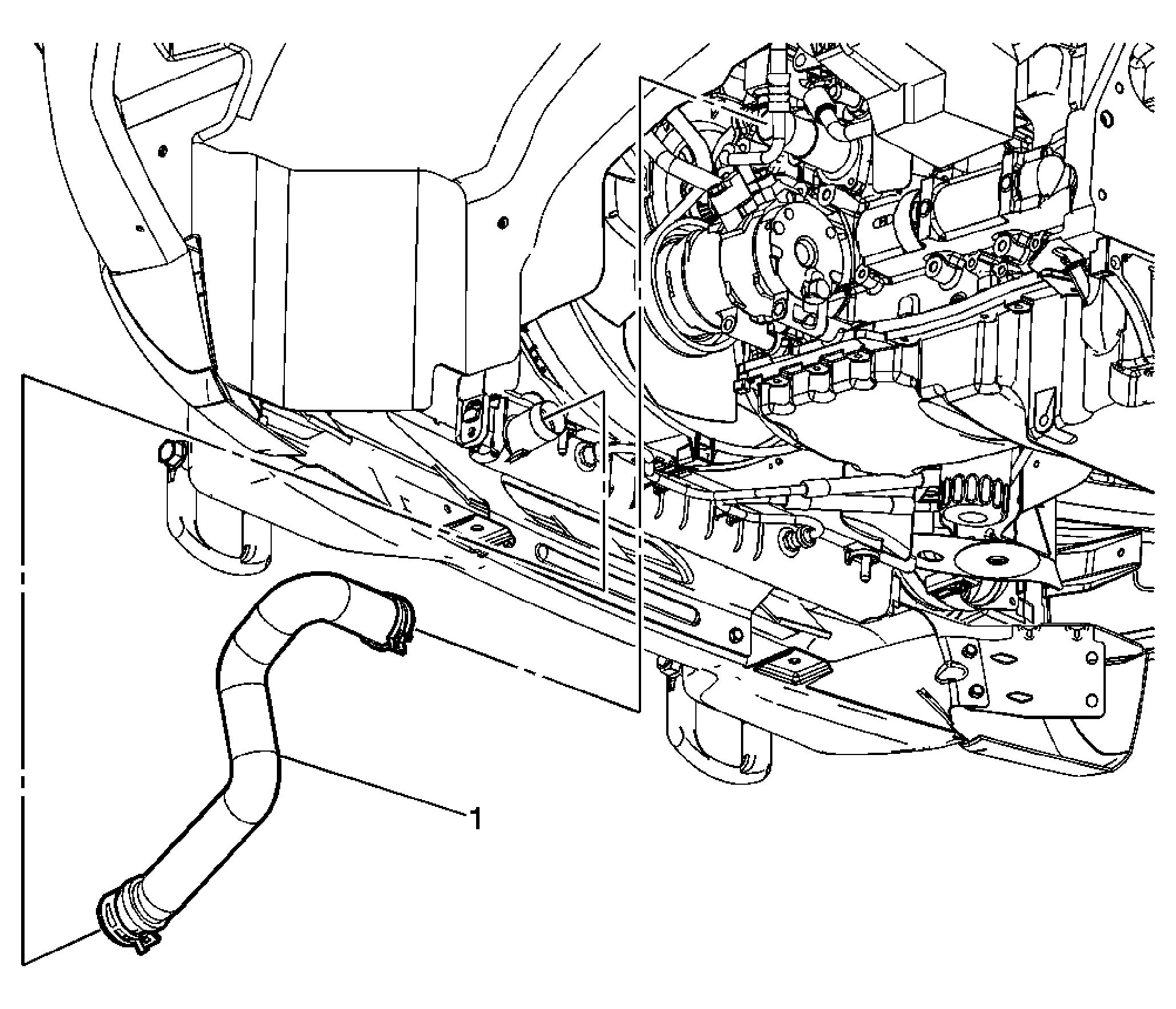

Fig 1: Radiator Outlet Hose (LLR)
GM1557070Courtesy of GENERAL MOTORS CORP.
Callout Component Name

Preliminary Procedures

  1. Raise and support the vehicle. Refer to Lifting and Jacking the Vehicle .
  2. Drain the cooling system. Refer to Cooling System Draining and Filling (Static Fill)  or Cooling System Draining and Filling (Vac-N-Fill) .
  3. Remove the left front wheelhouse panel. Refer to Front Wheelhouse Liner Replacement .
  4. Remove the engine shield. Refer to Engine Shield Replacement .
1 Radiator Outlet Hose
Tip:  Use J-38185:  pliers to release the radiator hose clamps.
Special Tools:
J-38185:  Hose Clamp Pliers
