Engine Coolant Fan Shroud Replacement (LH9) — 2010 Hummer H3 Base, Automatic Service Manual

Engine Coolant Fan Shroud Replacement (LH9)

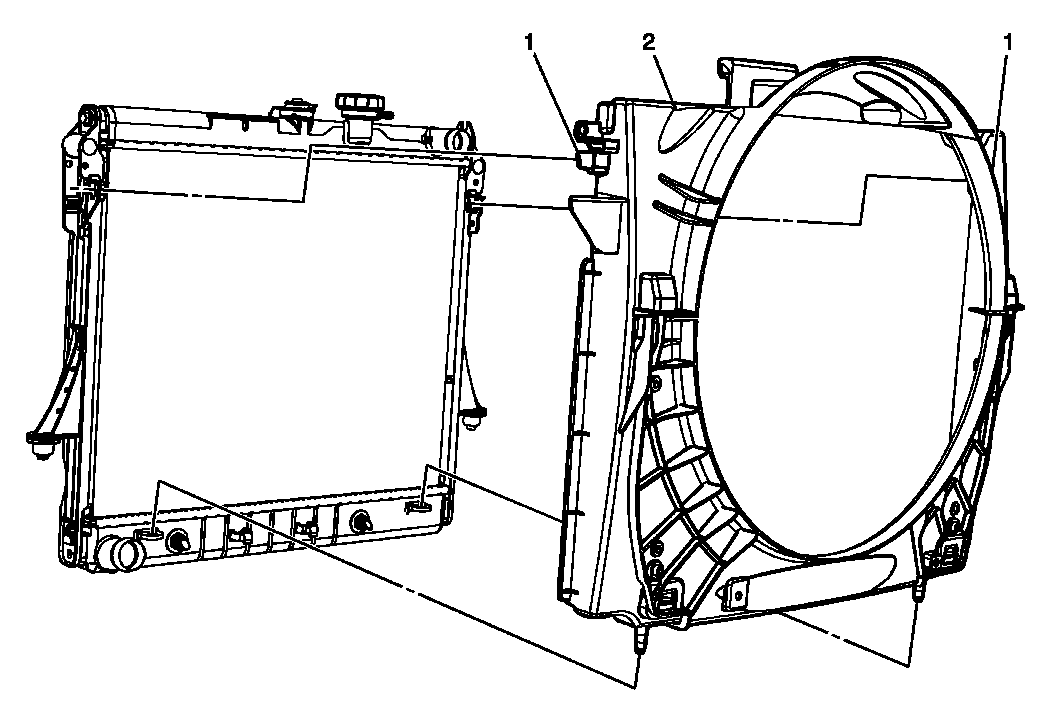

Fig 1: Engine Coolant Fan Shroud (LH9)
GM1907163Courtesy of GENERAL MOTORS CORP.
Callout Component Name

Preliminary Procedure

  1. Drain the cooling system. Refer to Cooling System Draining and Filling (Static Fill)  or Cooling System Draining and Filling (Vac-N-Fill) .
  2. Remove the air cleaner assembly. Refer to Air Cleaner Assembly Replacement .
  3. Unclip the lower section of the shroud assembly from the upper shroud for removal.
  4. Remove the radiator inlet hose. Refer to Radiator Inlet Hose Replacement (LLR)  or Radiator Inlet Hose Replacement (LH9) .
  5. Remove the radiator outlet hose retainers.
  6. Remove the a/c line retainers and reposition.
1 Fan Shroud Tab (Qty: 2)
2 Fan Shroud
