SENDING UNITS & SENSORS LOCATION
| Component | Локация |
|---|---|
| Accelerator Pedal Position (APP) Sensor | On accelerator pedal bracket. See Figure. |

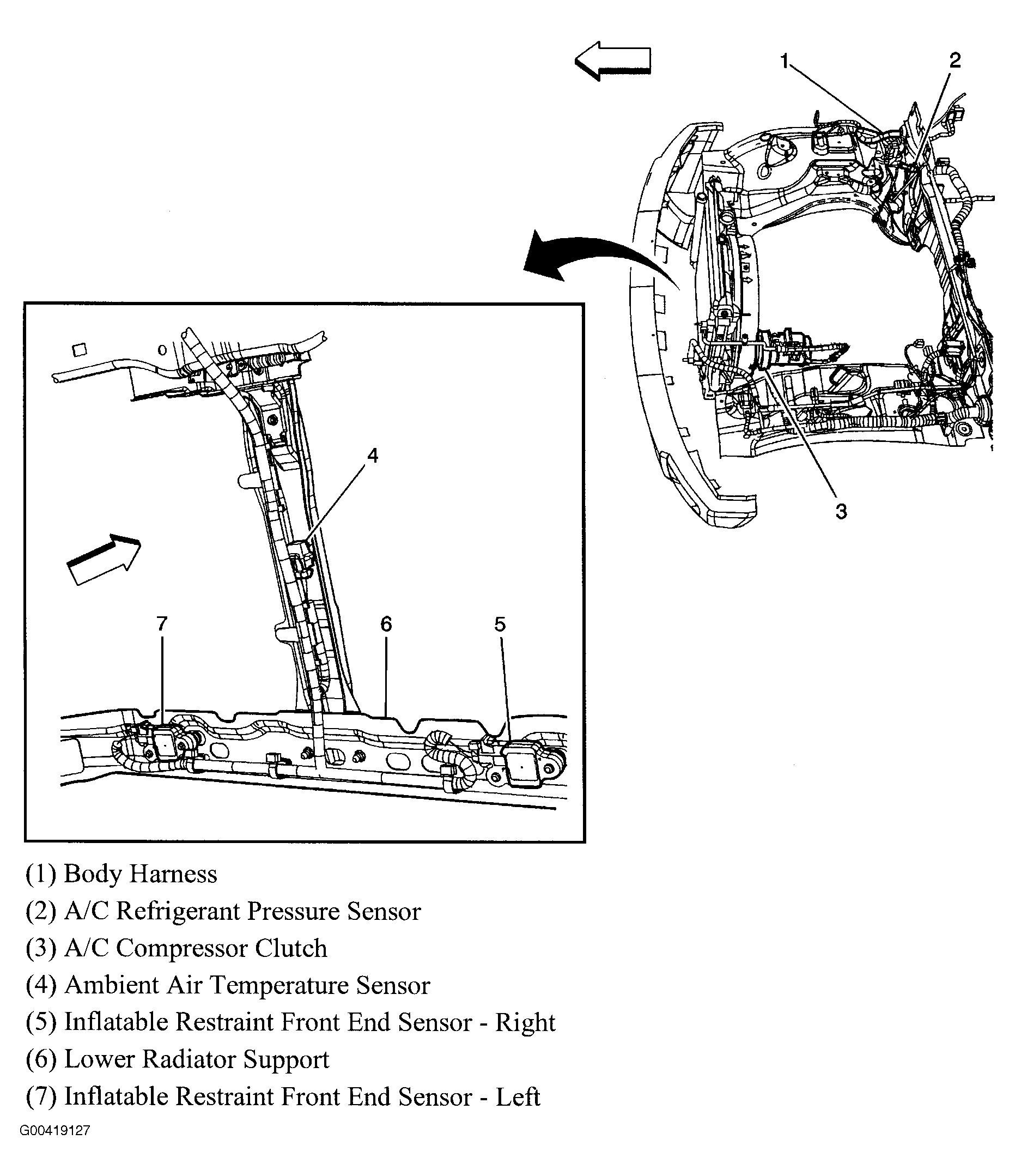

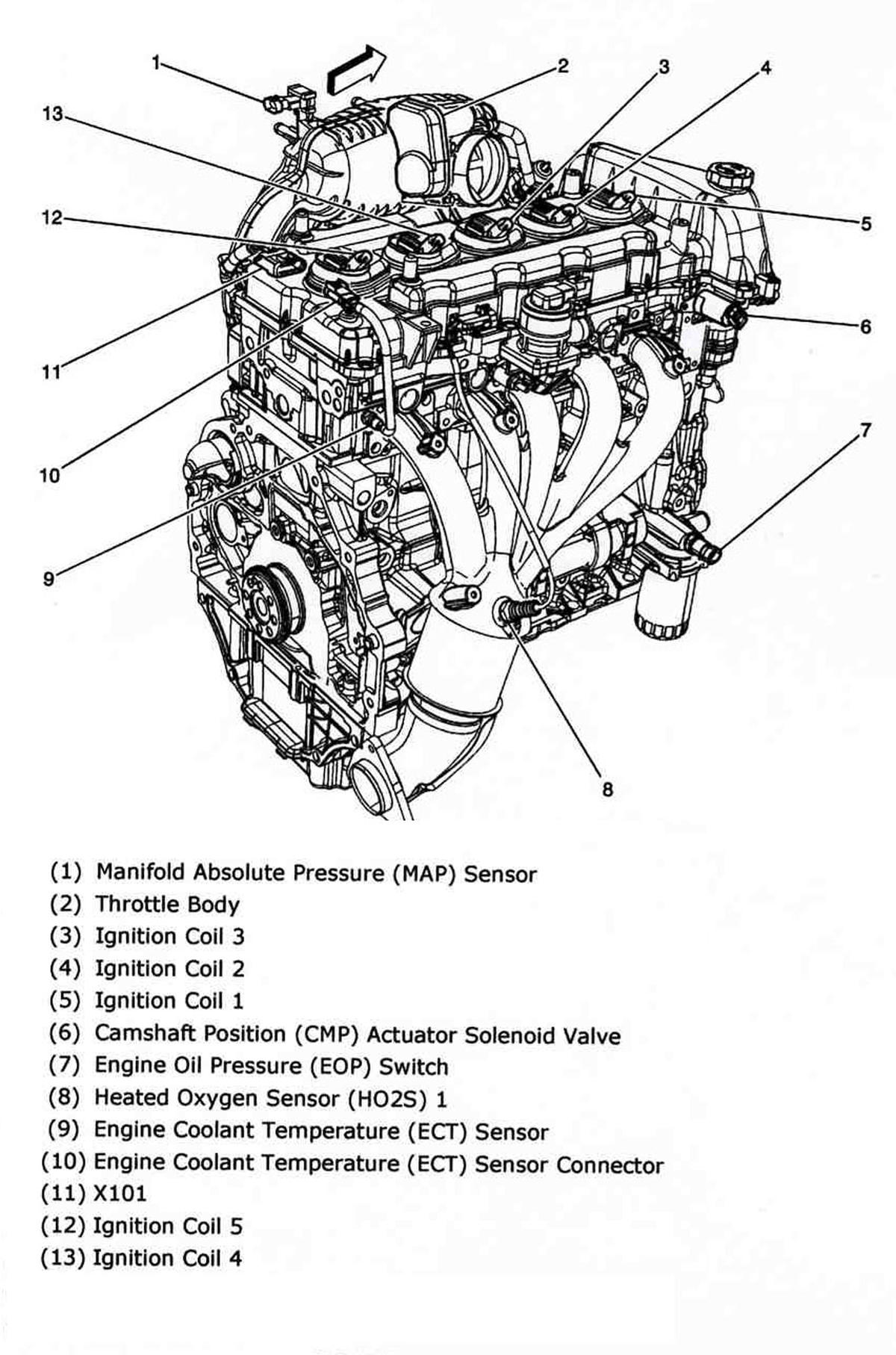

| A/C Refrigerant Pressure Sensor | On high pressure hose connection to compressor. See Figure. |
| Ambient Air Temperature Sensor | Attached to front center of radiator support. See Figure. |
| Ambient Light Sensor | Right side of dash upper trim panel. See Figure. |
| Automatic Transmission Input Shaft Speed (ISS) Sensor | In transmission. See Figure. |
| Camshaft Position (CMP) Sensor - Exhaust (3.7L) | Top right front of engine. See Figure. |
| Camshaft Position (CMP) Sensor - Intake (3.7) | Top front left of engine. See Figure. |
| Camshaft Position (CMP) Sensor (5.3L) | Front of engine above crank pulley. See Figure. |
| Crankshaft Position (CKP) Sensor (3.7L) | Left rear of engine block, below starter. See Figure. |
| Crankshaft Position (CKP) Sensor (5.3L) | Mounted to right rear of engine block behind starter motor. See Figure. |
| Engine Coolant Temperature (ECT) Sensor (3.7L) | Front left of engine. See Figure. |
| Engine Coolant Temperature (ECT) Sensor (5.3L) | Left side of engine. See Figure. |
| Engine Oil Pressure (EOP) Sensor | Top of engine near rear of intake manifold. |
| Evaporator Temperature Sensor | Behind right lower dash. See Figure. |
| Fuel Tank Pressure (FTP) Sensor | Top of fuel pump & sender assembly. See Figure. |
| Heated Oxygen Sensor (HO2S) Bank 1 Sensor 1 (5.3L) | Left side exhaust, before catalytic converter. See Figure. |
| Heated Oxygen Sensor (HO2S) Bank 1 Sensor 2 (5.3L) | Right side exhaust, before catalytic converter. |
| Heated Oxygen Sensor (HO2S) Bank 2 Sensor 1 (5.3L) | Left side exhaust, after catalytic converter. |
| Heated Oxygen Sensor (HO2S) Bank 2 Sensor 2 (5.3L) | Right side exhaust, after catalytic converter. |
| Heated Oxygen Sensor (HO2S) 1 (3.7) | On exhaust manifold on left side of engine. See Figure. |
| Heated Oxygen Sensor (HO2S) 2 (3.7) | In exhaust pipe, adjacent to transmission. See Figure. |
| Inflatable Restraint Front End Sensor - Left | Left lower radiator support. See Figure. |
| Inflatable Restraint Front End Sensor - Right | Right lower radiator support. See Figure. |

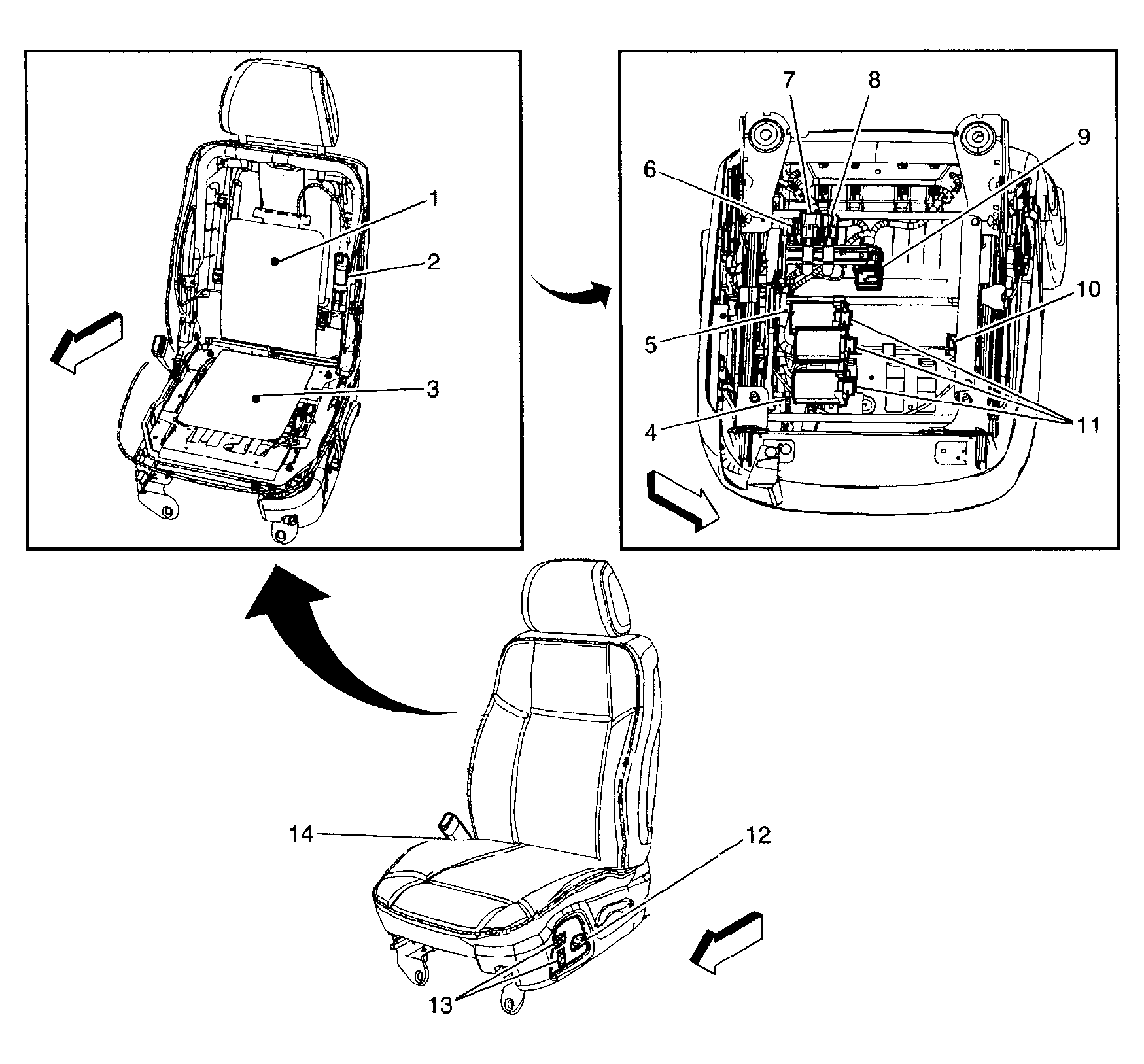

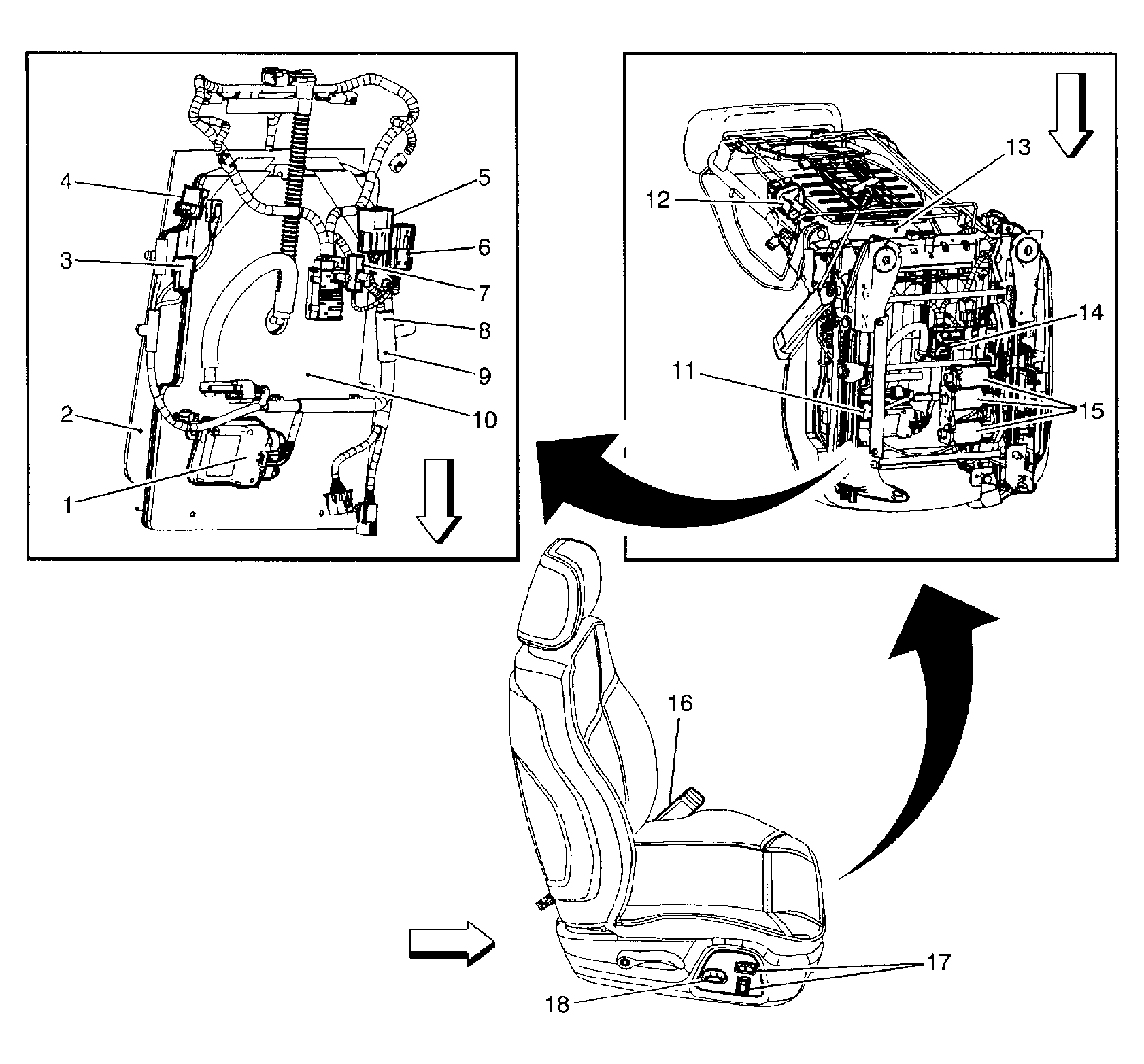

| Inflatable Restraint Passenger Presence System (PPS) Sensor (1) | In front passenger seat cushion. See Figure. |
| Inflatable Restraint Passenger Seat Belt Tension Sensor | Part of seat belt buckle. |
| Inflatable Restraint Seat Position Sensor (SPS) - Left (10) | On driver seat track. See Figure. |
| Inflatable Restraint Seat Position Sensor (SPS) - Right (11) | On driver seat track. See Figure. |
| Inflatable Restraint Side Impact Sensor (SIS) - Left (11) | In left front door. See Figure. |
| Inflatable Restraint Side Impact Sensor (SIS) - Right (2) | In right front door. See Figure. |
| Inflatable Restraint Vehicle Rollover Sensor | Under center console. See Figure. |
| Input Speed Sensor (ISS) Assembly | On transmission assembly. See Figure. |
| Knock Sensor (KS) Bank 2 | Below intake manifold, near front of engine. See Figure. |
| Knock Sensor (KS) - 1 (5.3L) | Lower left side of engine. See Figure. |
| Knock Sensor (KS) - 2 (5.3L) | Lower right side of engine. See Figure. |
| Longitudinal Accelerometer Sensor | Under driver seat, near C307. See Figure. |
| Manifold Absolute Pressure (MAP) Sensor (3.7L) (1) | At top right side rear of engine, on intake manifold. See Figure. |
| Manifold Absolute Pressure (MAP) Sensor (5.3L) | Top of engine, above intake manifold. See Figure. |
| Mass Air Flow (MAF)/Intake Air Temperature (IAT) Sensor | Between air cleaner & throttle body. See Figure. |
| Steering Wheel Position Sensor (5) | Near base of steering column. See Figure. |
| Tire Pressure Monitor Sensors | In respective tire. See Figure. |
| Vehicle Speed Sensor (VSS) | Left rear of transfer case. See Figure. |
| Wheel Speed Sensor (WSS) - LF | Attached to left front wheel hub. See Figure. |
| Wheel Speed Sensor (WSS) - LR | Attached to left side of rear axle. See Figure. |
| Wheel Speed Sensor (WSS) - RF | Attached to right front wheel hub. See Figure. |
| Wheel Speed Sensor (WSS) - RR | Attached to right side of rear axle. See Figure. |
| Yaw Rate/Lateral & Longitudinal Accelerometer Sensor | Under driver seat near X307. See Figure. |
