Driver or Passenger Seat Shoulder Belt Guide Adjuster Replacement

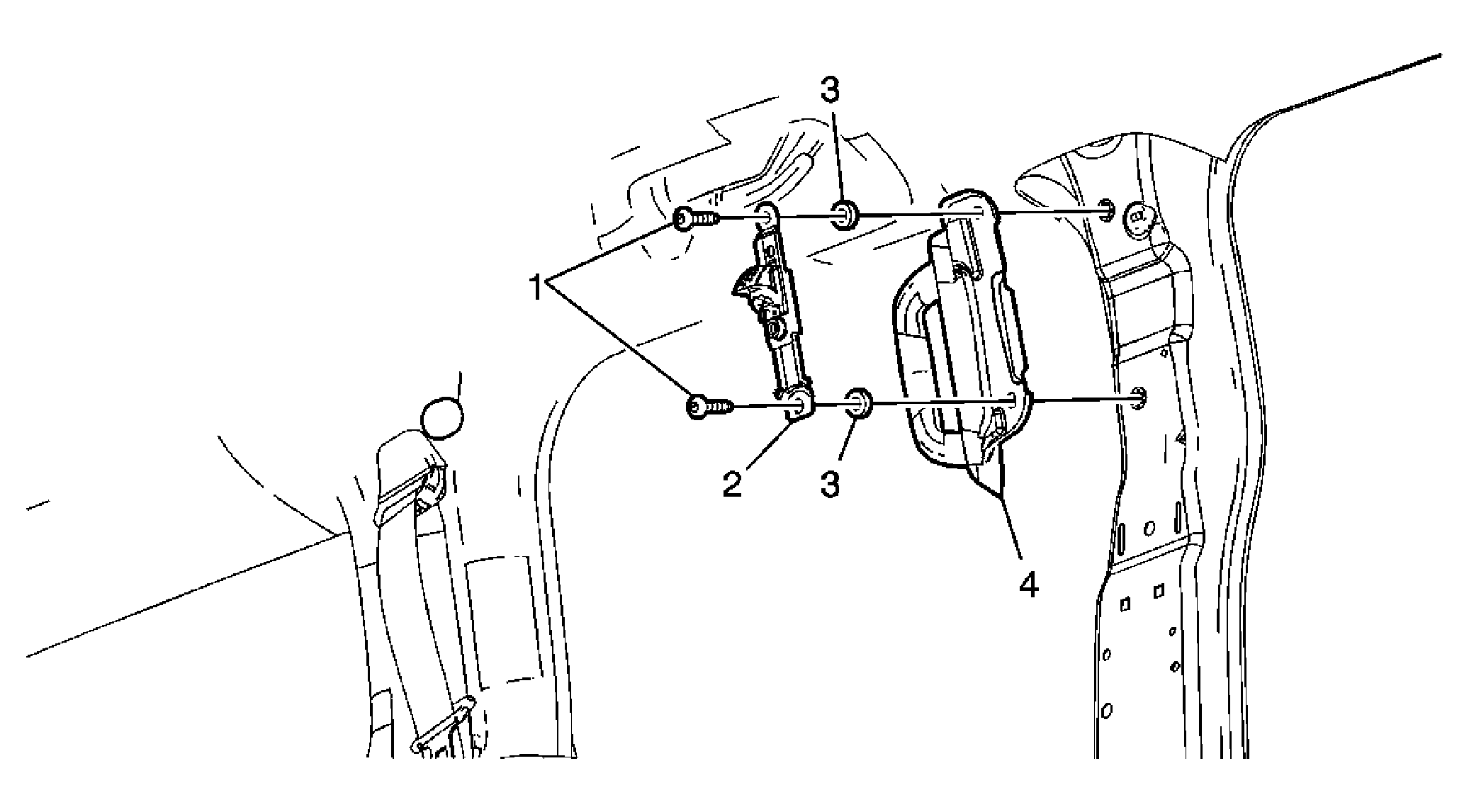

Fig 1: Driver Or Passenger Seat Shoulder Belt Guide Adjuster
GM1563631Courtesy of GENERAL MOTORS CORP.
Callout Component Name

Preliminary Procedure

  1. Remove the seat belt retractor. Refer to Seat Belt Retractor Pretensioner Replacement - Front .
  2. Remove the center pillar upper trim panel. Refer to Center Pillar Upper Trim Panel Replacement .
1 Seat Shoulder Belt Guide Track Bolt (Qty: 2)
CAUTION: Refer to Fastener Caution .

Tighten:  52 N.m (38 lb ft)
2 Seat Shoulder Belt Guide Track
3 Seat Shoulder Belt Guide Track Spacer (Qty: 2)
4 C-Pillar Assist Handle Assembly
