Exhaust Pipe Heat Shield Replacement (H3T)

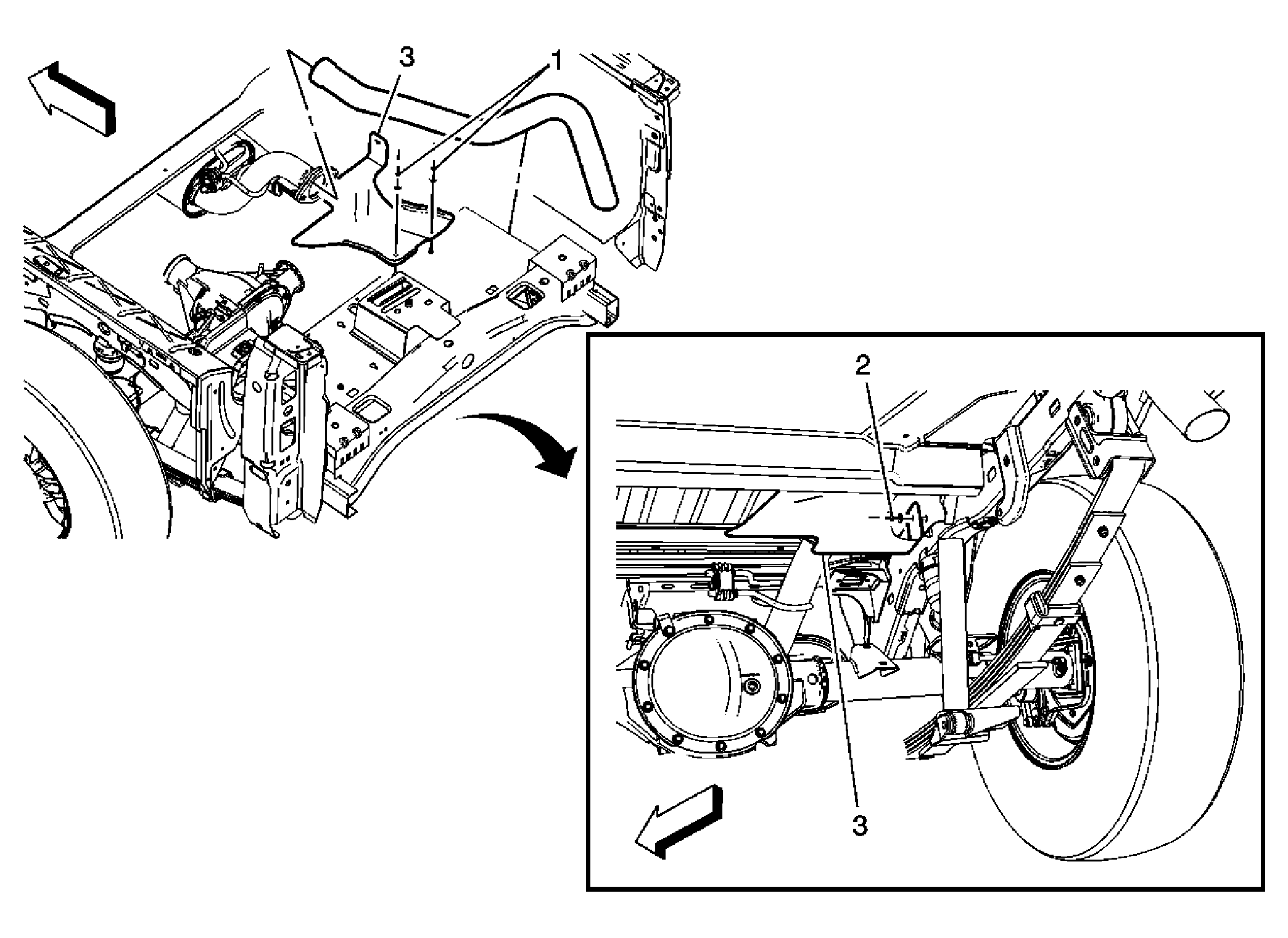

Fig 1: Exhaust Pipe Heat Shield (H3T)
GM2309310Courtesy of GENERAL MOTORS CORP.
Callout Component Name
Preliminary Procedure:
Raise and support the vehicle.Refer to Lifting and Jacking the Vehicle
1 Exhaust Rear Pipe Heat Shield Nut (Qty: 2)
WARNING: Refer to Hot Exhaust System Warning .
CAUTION: Refer to Fastener Caution

Tighten:  10 N.m (89 lb in).
2 Exhaust Rear Pipe Heat Shield Nut

Tighten:  10 N.m (89 lb in).
3 Exhaust Rear Pipe Heat Shield
