Exhaust Muffler Replacement (Pickup)

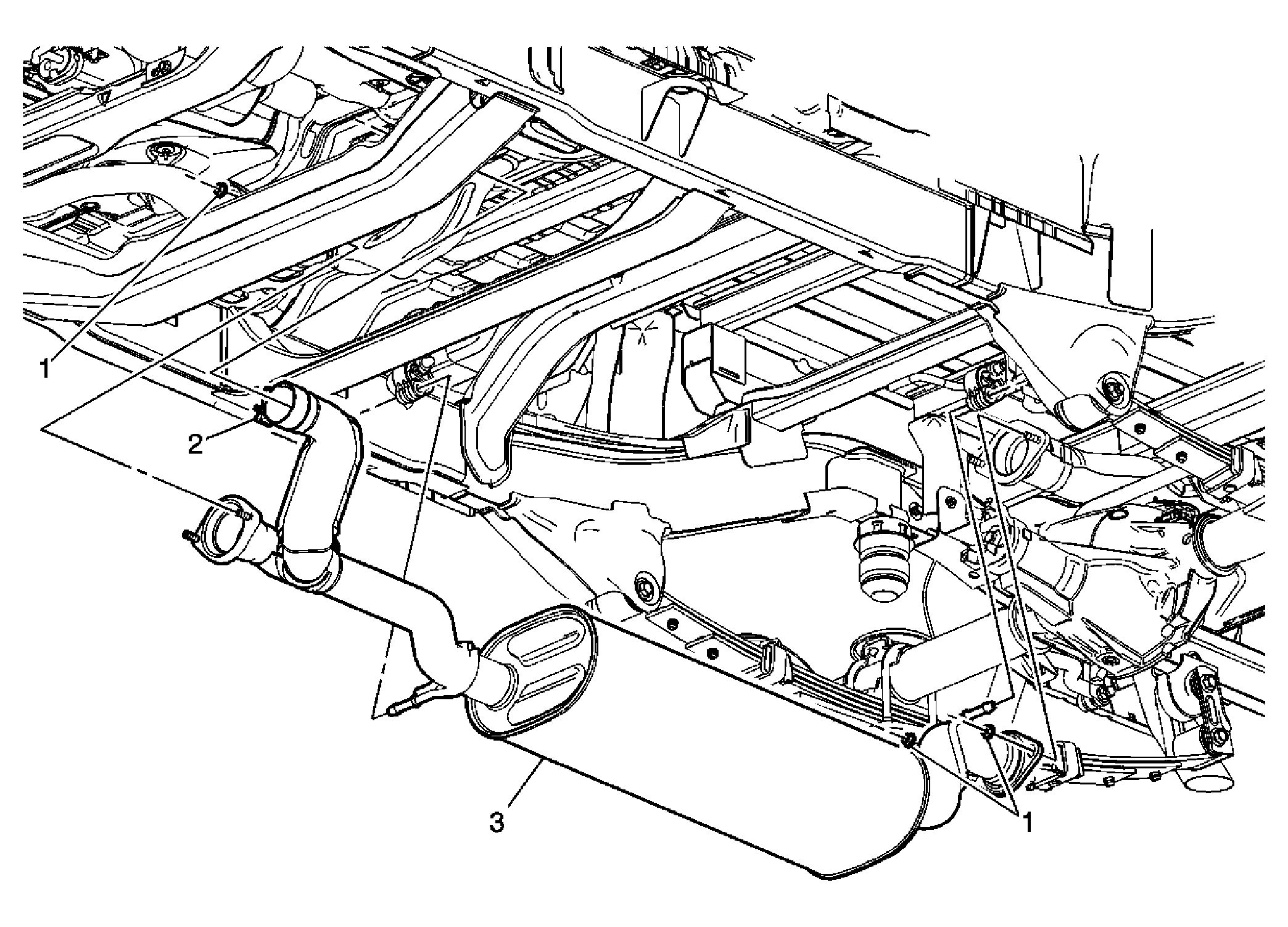

| Callout | Component Name |
|---|---|
|
WARNING:
Refer to Exhaust Service Warning
. Preliminary Procedure: Raise and support the vehicle. Refer to Lifting and Jacking the Vehicle
. |
|
| 1 | Exhaust Pipe Nut (Qty: 4)
CAUTION:
Refer to Fastener Caution
.
Tighten: 45 N.m (33 lb ft) |
| 2 | Exhaust Pipe Clamp Tighten: 44 N.m (32 lb ft) |
| 3 | Muffler Assembly
NOTE:
Always use new exhaust gaskets when removing, installing or replacing exhaust components. Procedure: Disengage the exhaust muffler rear pipe from the exhaust isolators. |
