Engine Coolant Air Bleed Pipe and Hole Cover Removal

WARNING: This page is about a different variant/trim than selected.

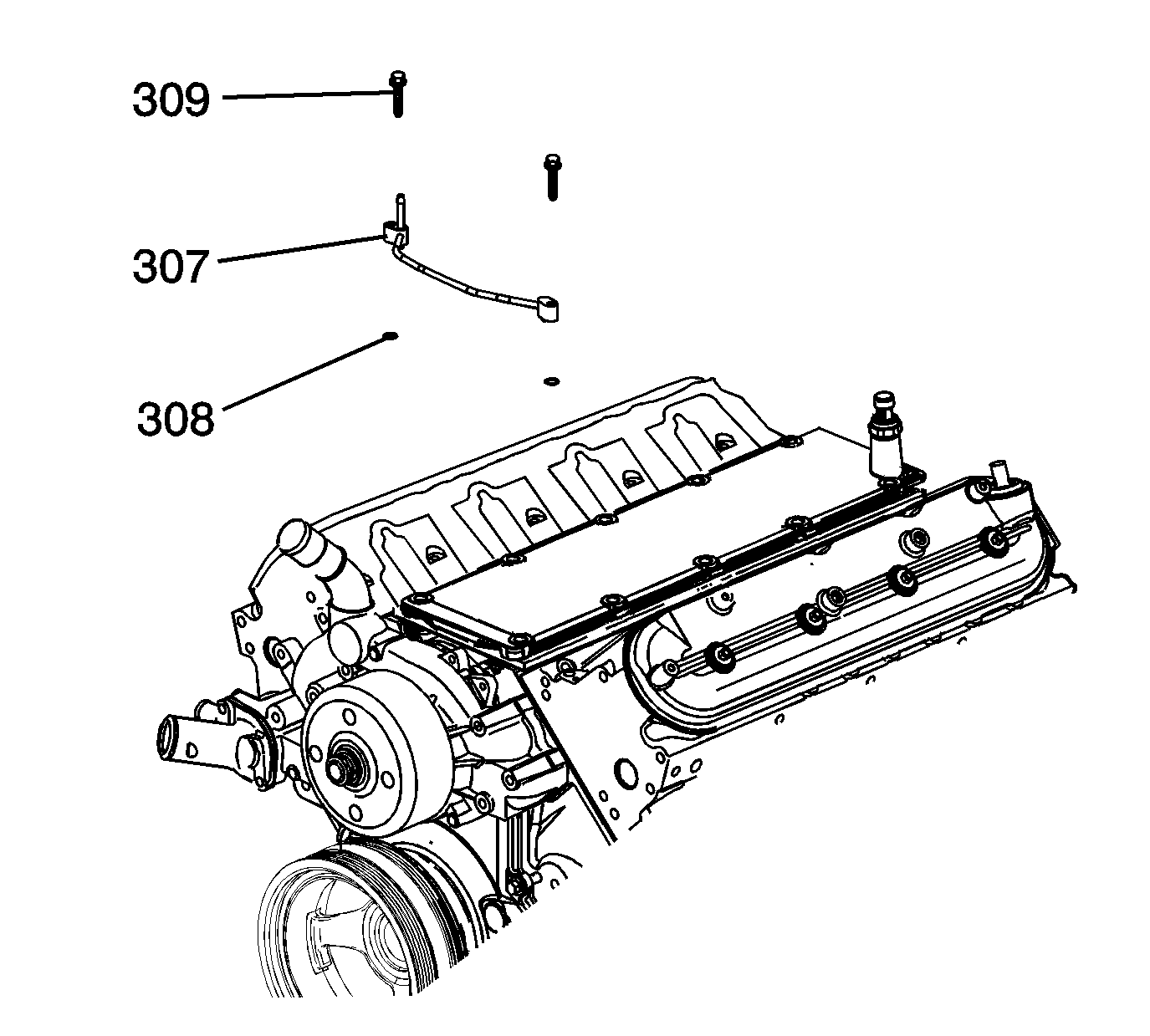

    Fig 1: Engine Coolant Air Bleed Pipe, Seals & Bolts
    GM1403313Courtesy of GENERAL MOTORS CORP.
  1. Remove the engine coolant air bleed pipe bolts (309).
  2. Remove the pipe (307) with seals (308).
    3. Fig 2: Coolant Air Bleed Covers, Seals & Bolts
    GM1403314Courtesy of GENERAL MOTORS CORP.
  3. Remove the engine coolant air bleed cover bolts (312).
  4. Remove the covers (313) with seals (308).
    5. Fig 3: Coolant Air Bleed Pipe Seal
    GM1552485Courtesy of GENERAL MOTORS CORP.
  5. Remove the seals (308) from the pipe and covers.
  6. Discard the seals.
