Special Tools

Special tools and workshop equipment required

• Brake Pedal Actuator: VAG1869/2  .
  Fig 1: Identifying Brake Pedal Actuator

  Courtesy of AUDI OF AMERICA, LLC
• Calibration Tool - Linear Laser: VAS6350/3A  (can be used from the Calibration Tool: VAS6350  )
  Fig 2: Identifying Linear Laser

  Courtesy of AUDI OF AMERICA, LLC
• Setting Device - Basic Set: VAS6430/1  or Setting Device - Basic Set: VAS6430/1A

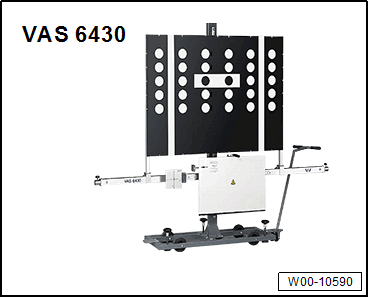

  Fig 3: Identifying Setting Device VAS 6430

  Courtesy of AUDI OF AMERICA, LLC
• Adapter VAS6430/9 : VAS6430/9  , only for surface mounted hoist with a dimension greater than 300 mm.
• Steering Wheel Scales: VAS6458

  Courtesy of AUDI OF AMERICA, LLC

• Night Vision Calibration Tool: VAS6430/6
• Vehicle Diagnostic Tester
• Wheel Alignment Computer
• Screwdriver with T-bar VAS272001: VAS272001  , not shown
• ACC Reflector Mirror - Audi: VAS6430/3
• Wheel Alignment Computer released by VW/Audi
